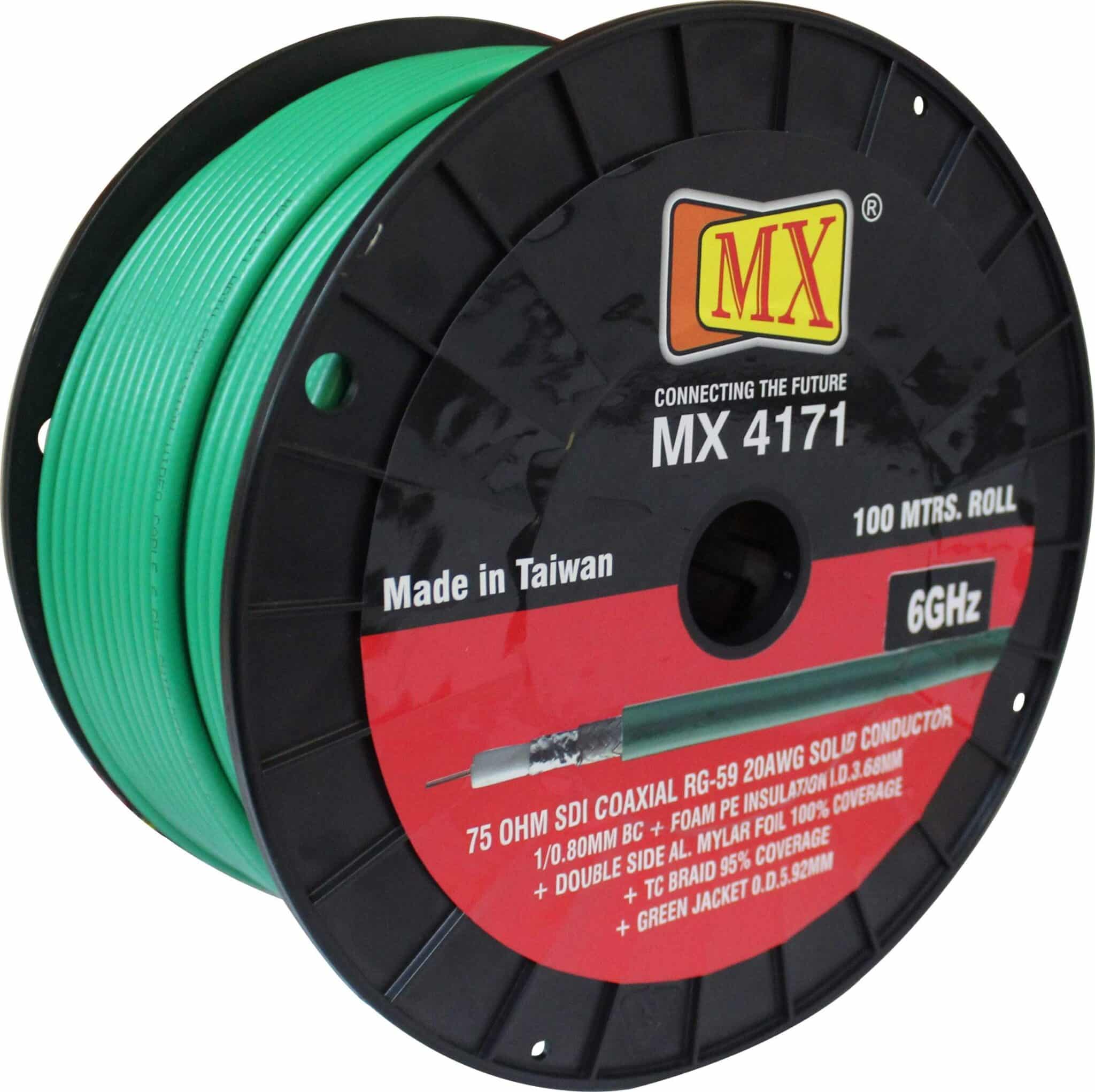

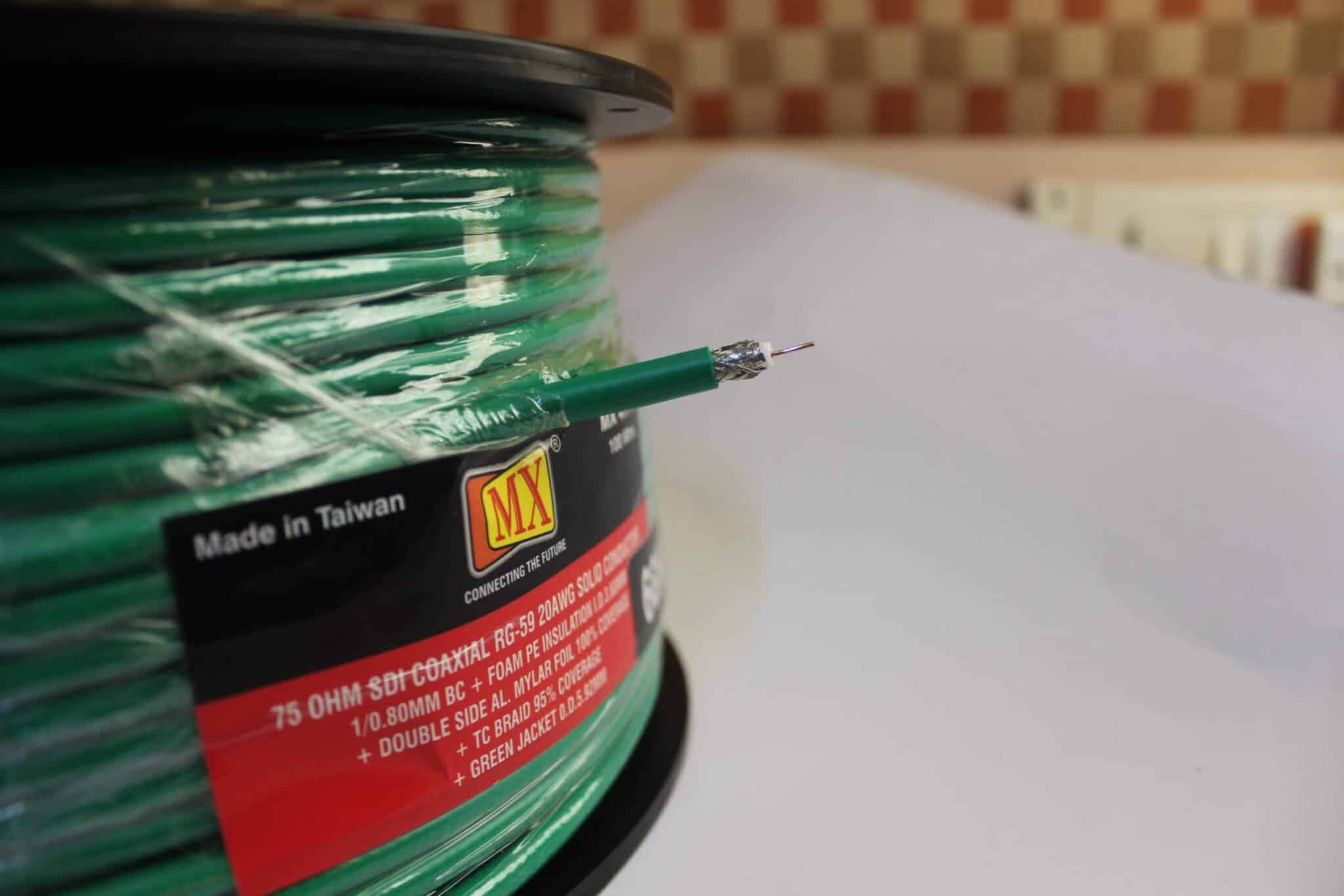

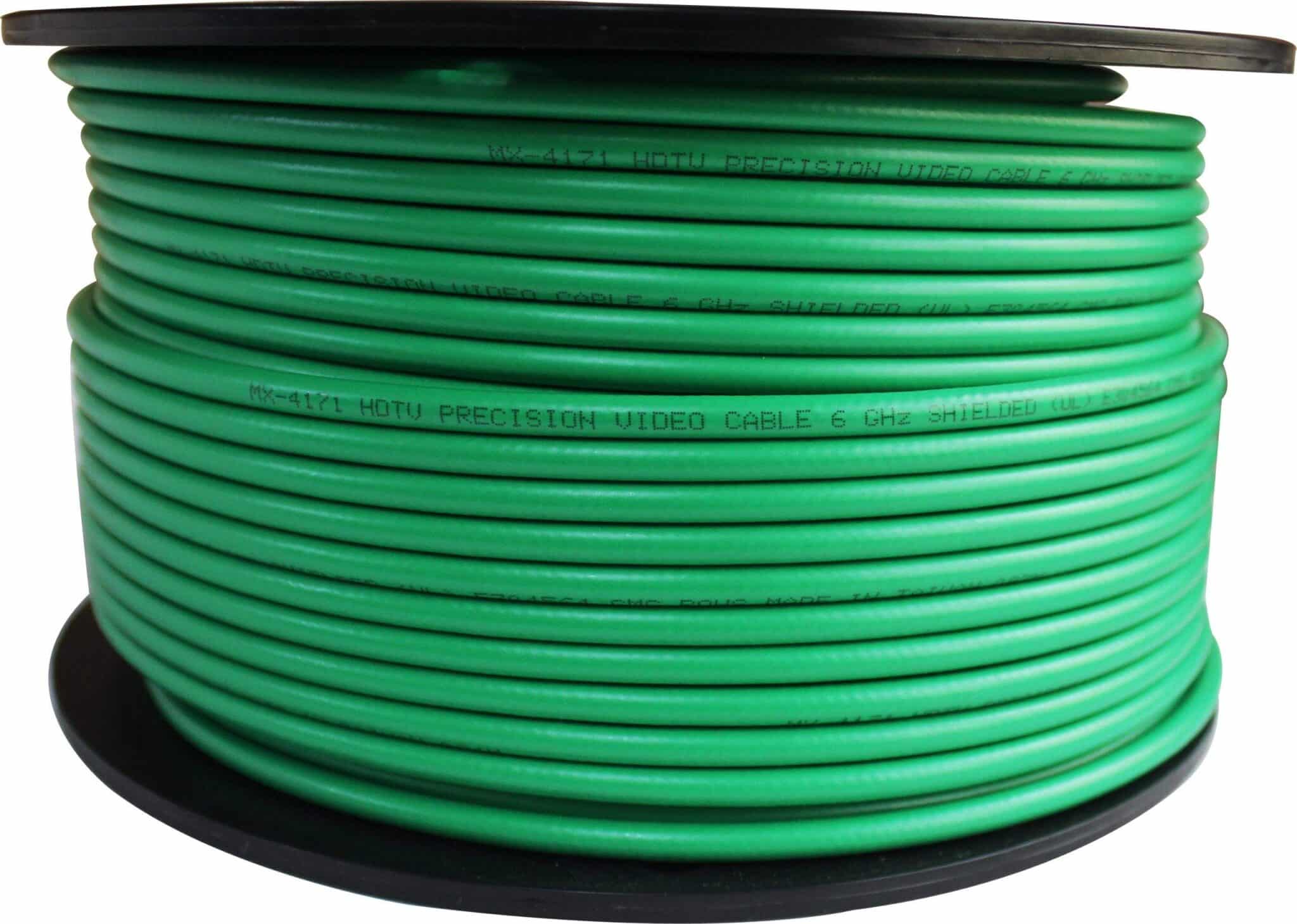

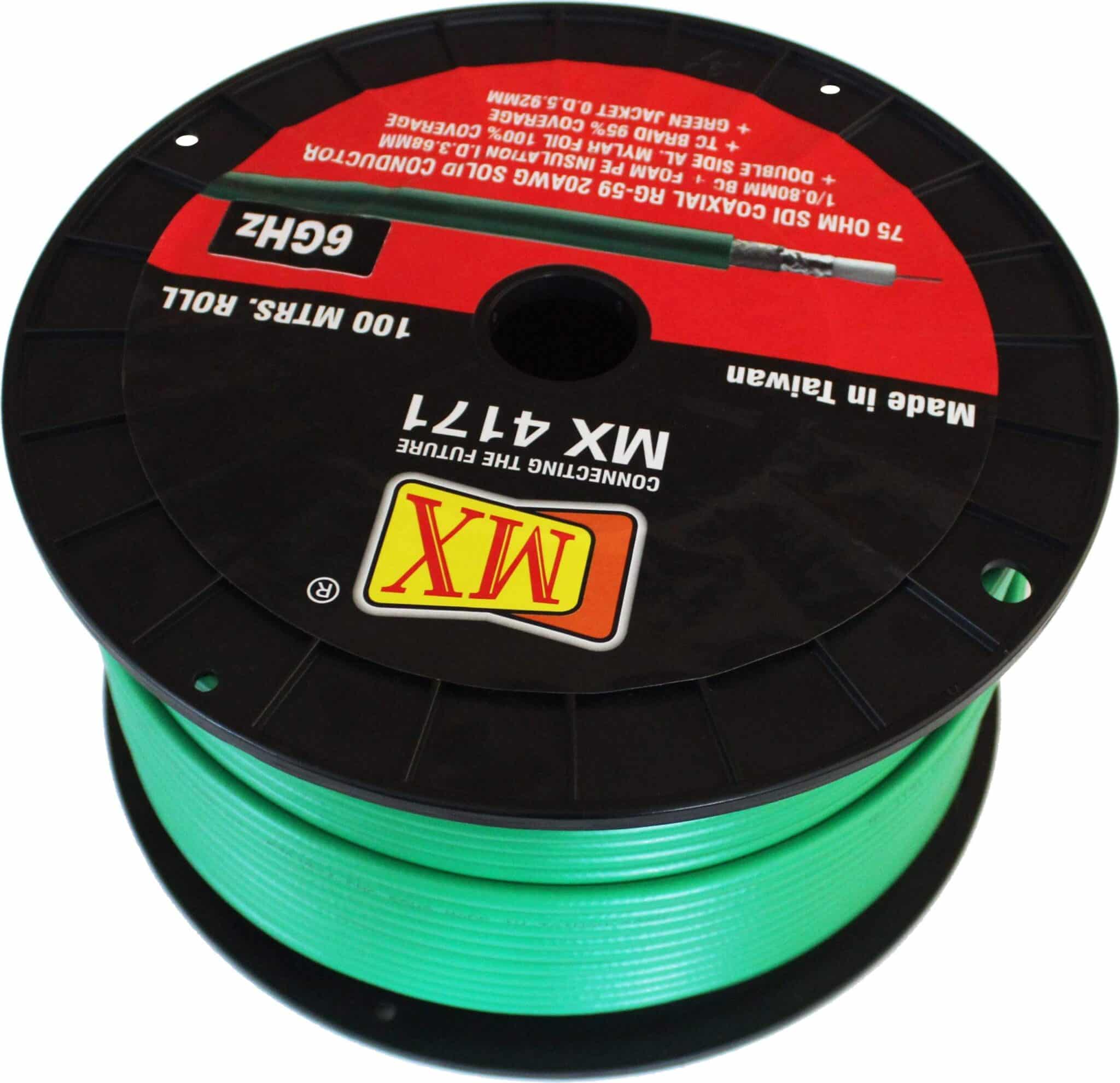

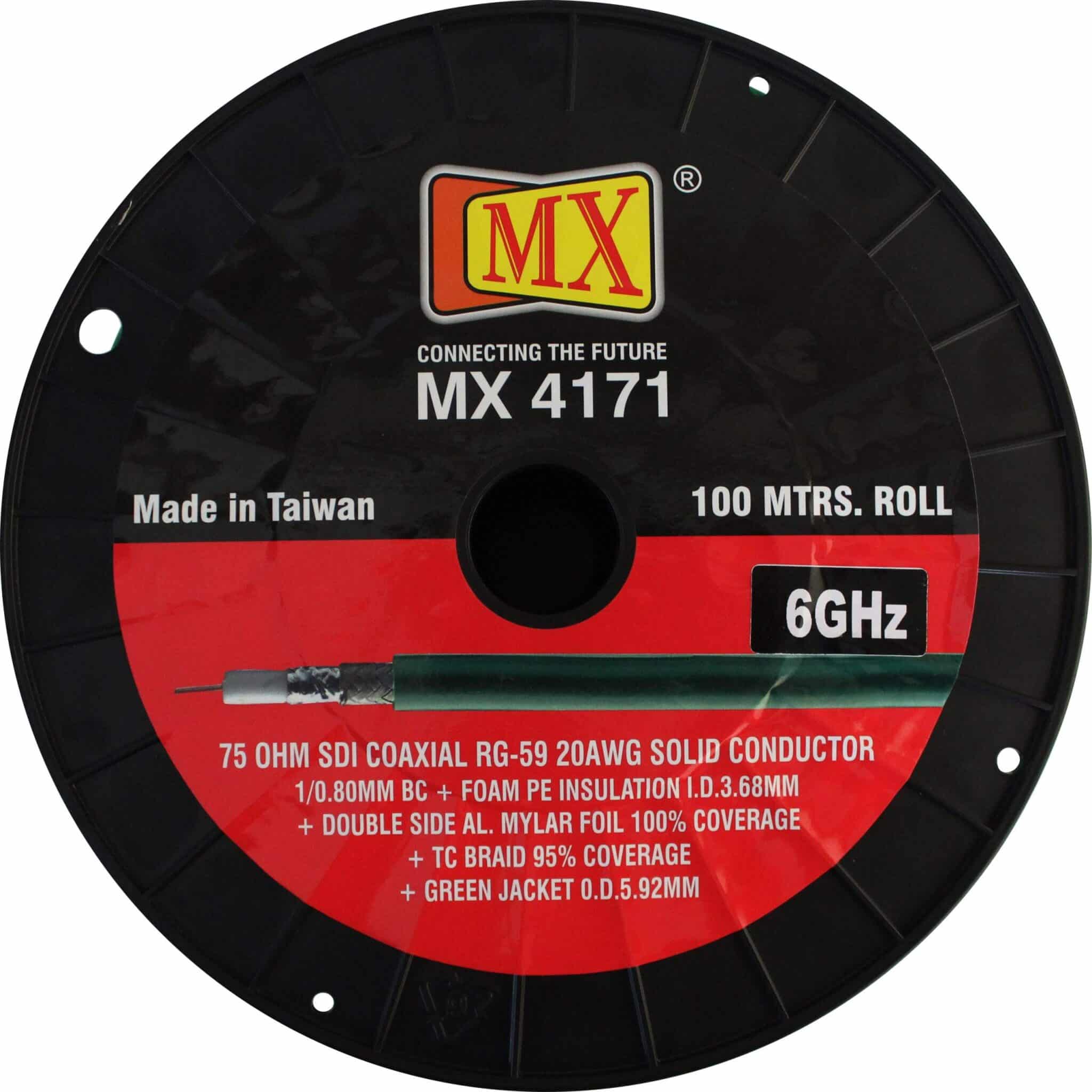

MX 75 Ohms 6 GHz Shielded– UHDTV / HD-SDI / SDI Coax Cable RG-59 : 20 AWG Solid Copper Conductor with Green PVC Jacket Coaxial Cable – OD : 5.92mm – 100 Meter Roll (UL) E304564 CMG ROHS MADE IN TAIWAN (MX-4171)

₹22,000.00 Original price was: ₹22,000.00.₹16,500.00Current price is: ₹16,500.00.
In Stock

Meet the MX 4171 – 6 G RG59 Digital Video Coaxial Cable—an expertly crafted broadcast video cable designed for both analog and digital signals. Ideal for high-quality video transmission, including Digital Video, 6 Gb/s UHDTV, and HD-SDI 1080p, this cable boasts a solid bare copper conductor for optimal signal conductivity. Its robust PVC (Polyvinyl Chloride) outer sheath ensures durability and resistance against abrasions. Elevate your video experience with precision and reliability in one sleek package.

This product has been added to 1 people'scarts.

In Stock
Add to wishlist
  • Secure Payments
  • Fast Delivery
  • GST Invoice Available
SKU: MX 4171
Categories: , ,
Tags: , , , , , , , , ,

Description

Specifications:

  • MX Model No. : 4171
  • Coaxial Cable Type : RG 59
  • Characteristic Impedance : 75 Ω
  • Attenuation : 1 MHz : 0.3 dB/100ft, 10 MHz : 0.9 dB/100ft, 100 MHz : 2.3 dB/100ft, 1000 MHz : 7.6 dB/100ft, 2000 MHz : 11.2 dB/100ft, 4500 MHz : 17.5 dB/100ft, 6000 MHz : 21.1 dB/100ft
  • Sheath Colour : Green
  • Conductor Strand Type : Solid
  • Conductor Material : Bare Copper ( 0.8mm)
  • Core Strands : 1/20
  • Size of Strands : 20 AWG
  • Shielding : Double side Aluminum Mylar Foil + Tinned Copper Braid 95% Coverage
  • Capacitance : 53.464 pF/m
  • Operating Temperature Range : -20 → +70 °C
  • Sheath Material : Polyvinyl Chloride PVC , Outer Dia. : 5.92mm
  • Insulation Material : Foam PE , Inner Dia. : 3.68mm
  • Each Roll Dimension & Weight : 25 cm X 25 cm X 13 cm – 4.8 Kg
  • Packaging of Each roll Dimension & Weight : 28 cm X 25 cm X 18 cm – 5.5 Kg
  • HSN Code :8544 4299.
