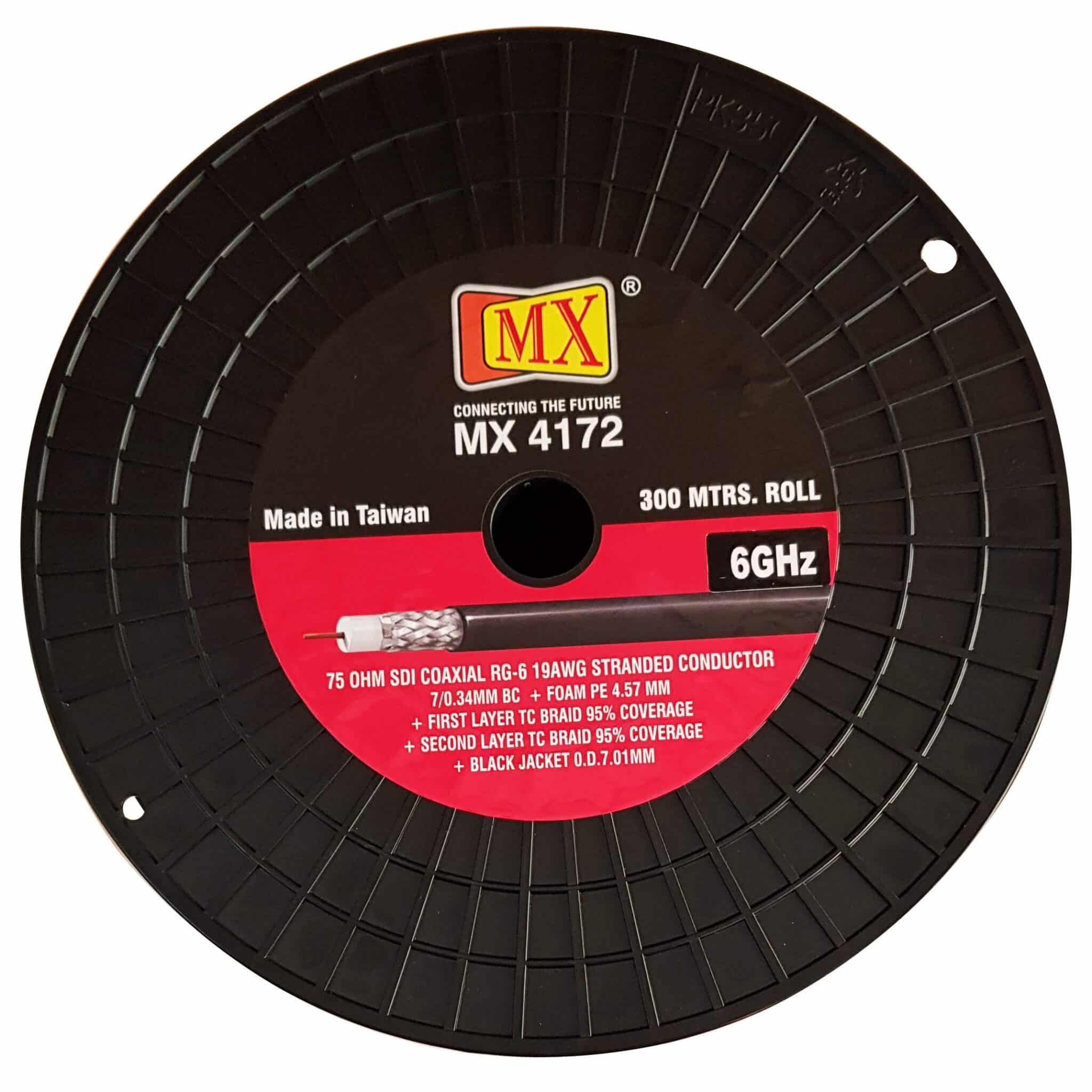

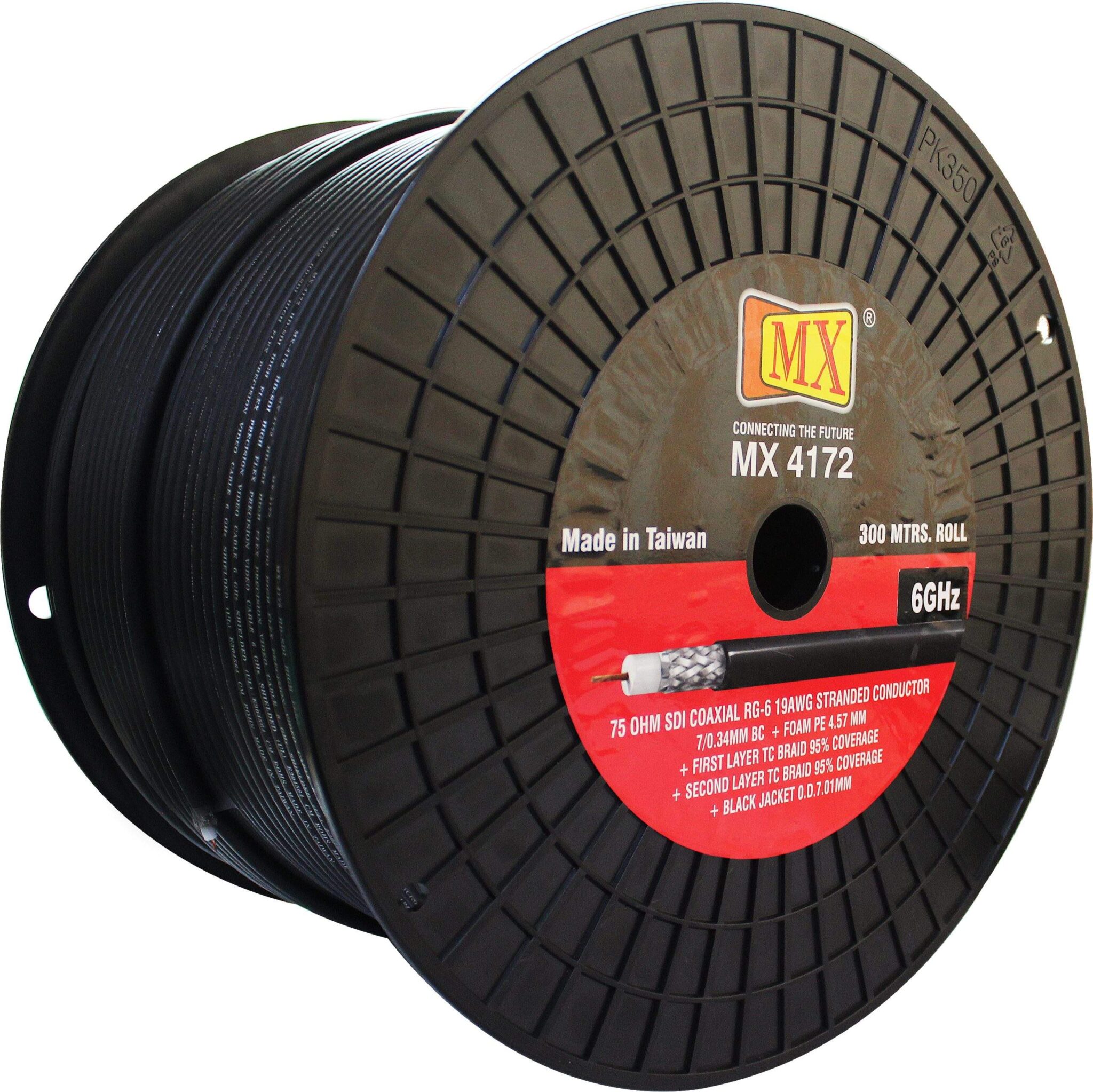

MX 75 Ohms 6 GHz – UHDTV / HD-SDI / SDI Coax RG-6 19AWG Stranded Copper Wire with Double Shield Black PVC Jacket Flexible Coaxial Cable – 300 Meter Roll (UL) E304564 CM ROHS MADE IN TAIWAN (MX-4172)
MX 75 Ohms 6 GHz – UHDTV / HD-SDI / SDI Coax RG-6 19AWG Stranded Copper Wire with Double Shield Black PVC Jacket Flexible Coaxial Cable – 300 Meter Roll (UL) E304564 CM ROHS MADE IN TAIWAN (MX-4172) - Image 2
MX 75 Ohms 6 GHz – UHDTV / HD-SDI / SDI Coax RG-6 19AWG Stranded Copper Wire with Double Shield Black PVC Jacket Flexible Coaxial Cable – 300 Meter Roll (UL) E304564 CM ROHS MADE IN TAIWAN (MX-4172) - Image 3
MX 75 Ohms 6 GHz – UHDTV / HD-SDI / SDI Coax RG-6 19AWG Stranded Copper Wire with Double Shield Black PVC Jacket Flexible Coaxial Cable – 300 Meter Roll (UL) E304564 CM ROHS MADE IN TAIWAN (MX-4172) - Image 4

MX 75 Ohms 6 GHz – UHDTV / HD-SDI / SDI Coax RG-6 19AWG Stranded Copper Wire with Double Shield Black PVC Jacket Flexible Coaxial Cable – 300 Meter Roll (UL) E304564 CM ROHS MADE IN TAIWAN (MX-4172)

₹111,000.00 Original price was: ₹111,000.00.₹77,700.00Current price is: ₹77,700.00.
In Stock

The MX 4172 6G RG-6 Coaxial Cable is designed for superior video transmission, supporting Digital Video, 6 Gb/s UHDTV, and HD-SDI 1080p. Its 19 AWG bare copper (compacted), stranded center conductor, and foam polyethylene insulation ensure advanced impedance stability. The double tinned copper braid shielding provides 100 dB of shield isolation with improved flex characteristics. This cable is ideal for routing through building walls, conduit in studio settings, and fixed installations. Additionally, its versatility extends to patch bays, live event shooting, and remote outdoor field locations, making cable a reliable choice for demanding video applications.

In Stock
Add to wishlist1 person favorited this product
  • Secure Payments
  • Fast Delivery
  • GST Invoice Available
SKU: MX 4172
Categories: , ,
Tags: , , , , , , , , , , , , , , , ,

Description

Specifications:

  • MX Model No. : 4172
  • Coaxial Cable Type : RG 6
  • Characteristic Impedance : 75 Ω
  • Attenuation : 1 MHz : 0.24 dB/100ft, 10 MHz : 0.72 dB/100ft, 100 MHz : 2.4 dB/100ft, 1000 MHz : 8.4 dB/100ft, 2000 MHz : 12.5 dB/100ft, 4500 MHz : 20.6 dB/100ft, 6000 MHz : 28.7 dB/100ft
  • Sheath Colour : Black
  • Conductor Strand Type : Stranded (19AWG)
  • Conductor Material : Bare Copper
  • Core Strands / Size : 7/0.34 mm
  • Size of Strands : 22 AWG
  • Shielding : First Layer & Second Layer Tinned Copper Braid 95% Coverage
  • Capacitance : 55.8 pF/m
  • Operating Temperature Range : -20 → +70 °C
  • Sheath Material : Polyvinyl Chloride PVC , Outer Dia. : 7.01mm
  • Insulation Material : Foam PE , Inner Dia. : 4.57mm
  • Each Roll Dimension & Weight : 35 cm X 35 cm X 24.5 cm – 20 Kg
  • Packaging of Each roll Dimension & Weight : 37 cm X 37 cm X 27 cm in – 20.8 Kg

Stay updated, engaged, and connected by following us on our various social media platforms. Join the conversation, discover exciting content, and be a part of our journey.

Facebook: Follow us on Facebook for the latest updates & Like, share, and be a part of our growing Facebook family!

Instagram: Experience our world visually on Instagram. Discover stunning visuals, and sneak peeks, and share in the moments that make our story unique. Don’t forget to tag us in your posts too!

Twitter: Follow us on Twitter for real-time updates, quick bites of information, and to join in on trending conversations. Engage with us and stay in the loop with our tweets.

LinkedIn : Connect with us professionally on LinkedIn. Stay informed about our industry insights, company updates, and career opportunities. Let’s build a network that thrives on collaboration.

YouTube: Subscribe to our YouTube channel for exciting videos, tutorials, and exclusive content. Dive deep into our story and get to know us better through the power of video.

You can also buy MX products from Amazon.

CONTACT US: Incase you have any issues in accessing this Page please email us on [email protected] or whats app us on : +91 8805029016 / 9552529345

Additional information

Weight 18 kg
