MX 6 CHANNEL AUDIO MIXER / SPLITTER

20,500.00 Original price was: ₹20,500.00.10,602.00Current price is: ₹10,602.00.
In Stock

HSN Code :8543 7099

MX SM 882 is a versatile combination of a 6-in-2 mixer and a 2-in-6 splitter, while it also provides a handy way of adjusting levels or impedances by acting as a buffered level translator from -10 dBV to +4 dBu or vice versa. It offers 6 identical input/output sections with level control, panpot / balance control and 8-LED level meter each. Every section can be configured with a switch to either work as an input for a mix available at the master output, or as a splitter output from a master signal fed to the master input. In a mixer application, the main input section can be used as two additional inputs which makes the unit effectively sporting up to 8 inputs in mixer configuration. The versatility of this unit spans applications from sub-mixing of keyboards in a stage sound system to zone signal splitting in  commercial sound systems. The broad range of applications also makes the MX SM 882 a useful problem solver in the vaults of any rental company

CONTACT US: Incase you have any issues in accessing this Page please email us on [email protected] or whats app us on : +91 8805029016 / 9552529345

In Stock
Add to wishlist1 person favorited this product
  • Secure Payments
  • Fast Delivery
  • GST Invoice Available
SKU: MX-SM882

Description

Specifications:

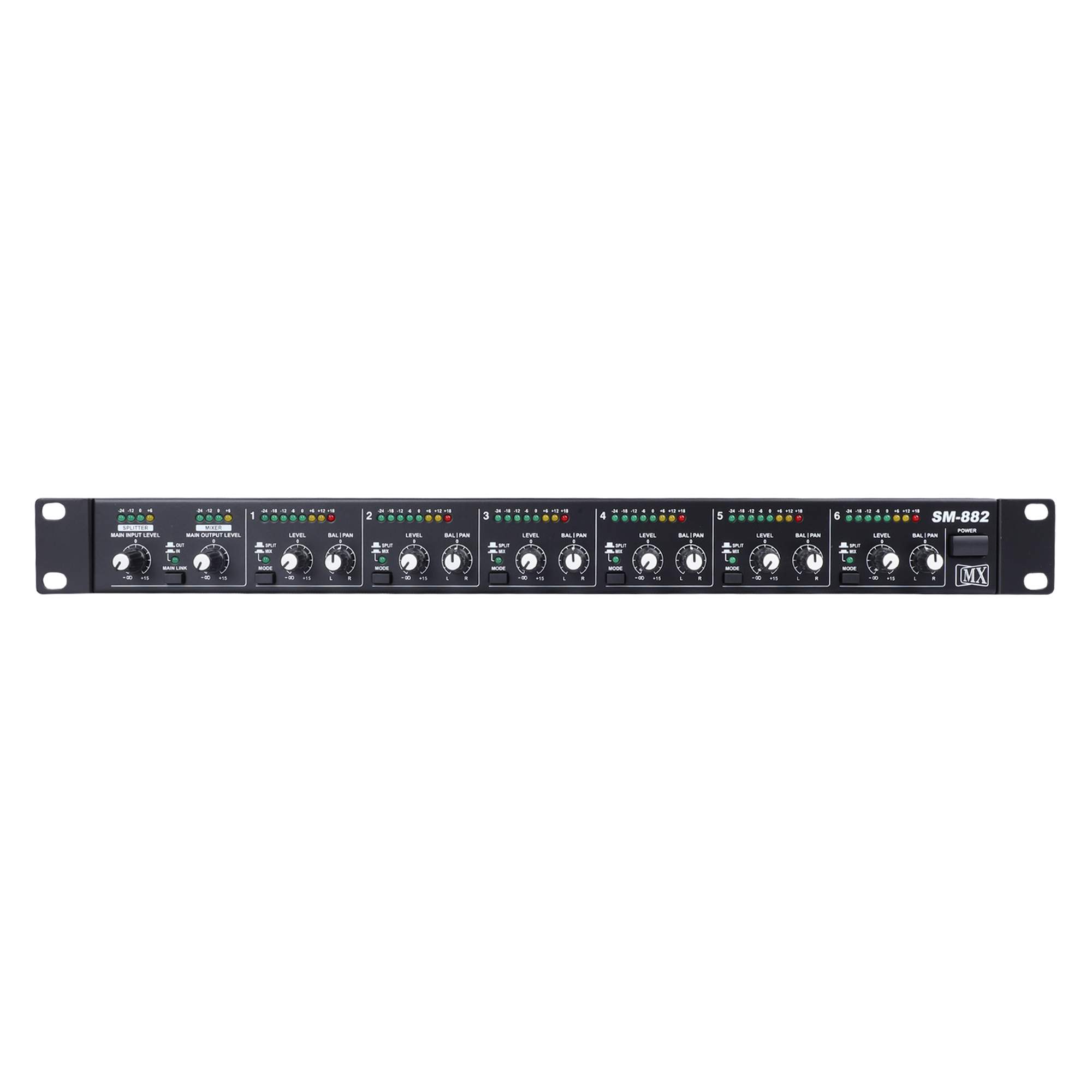

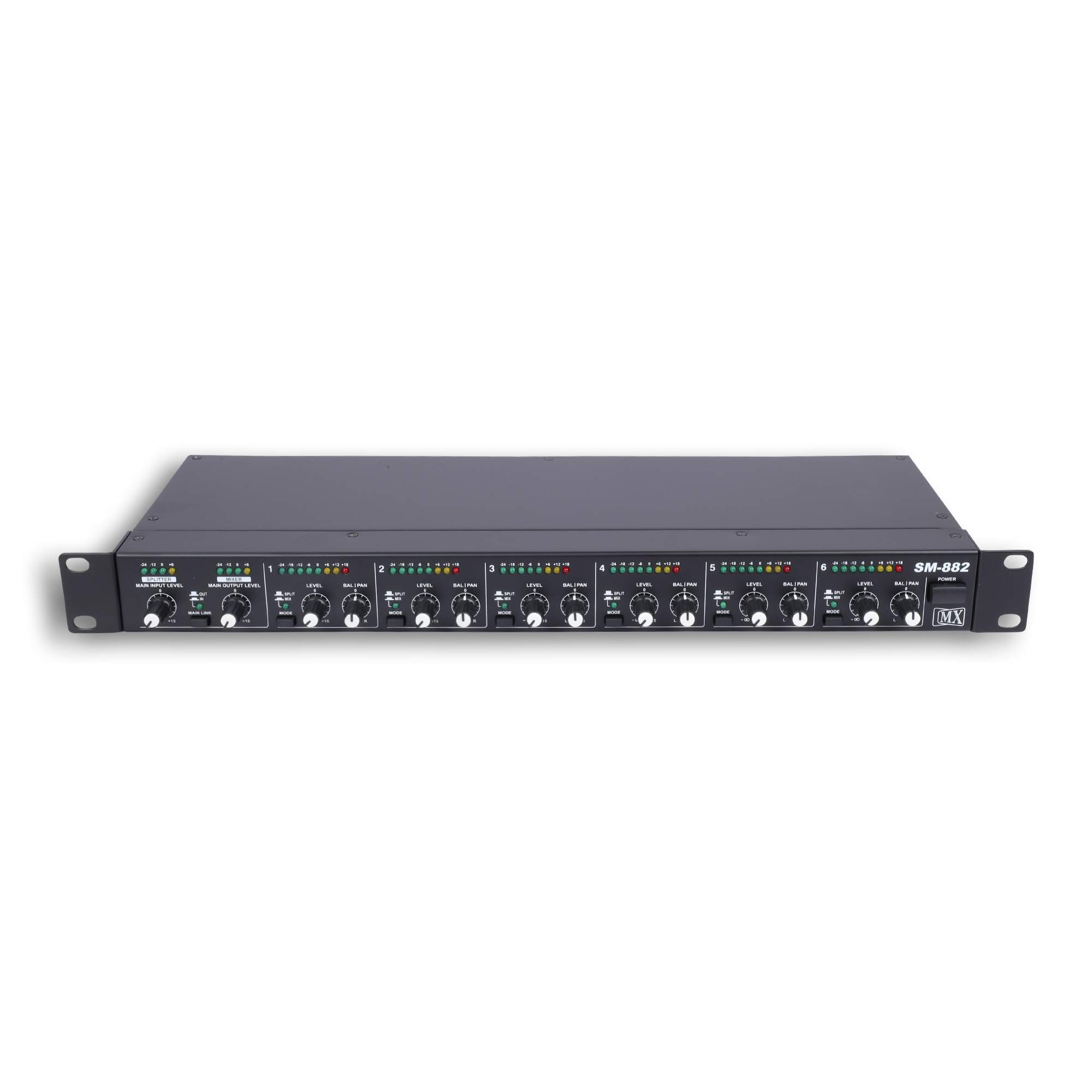

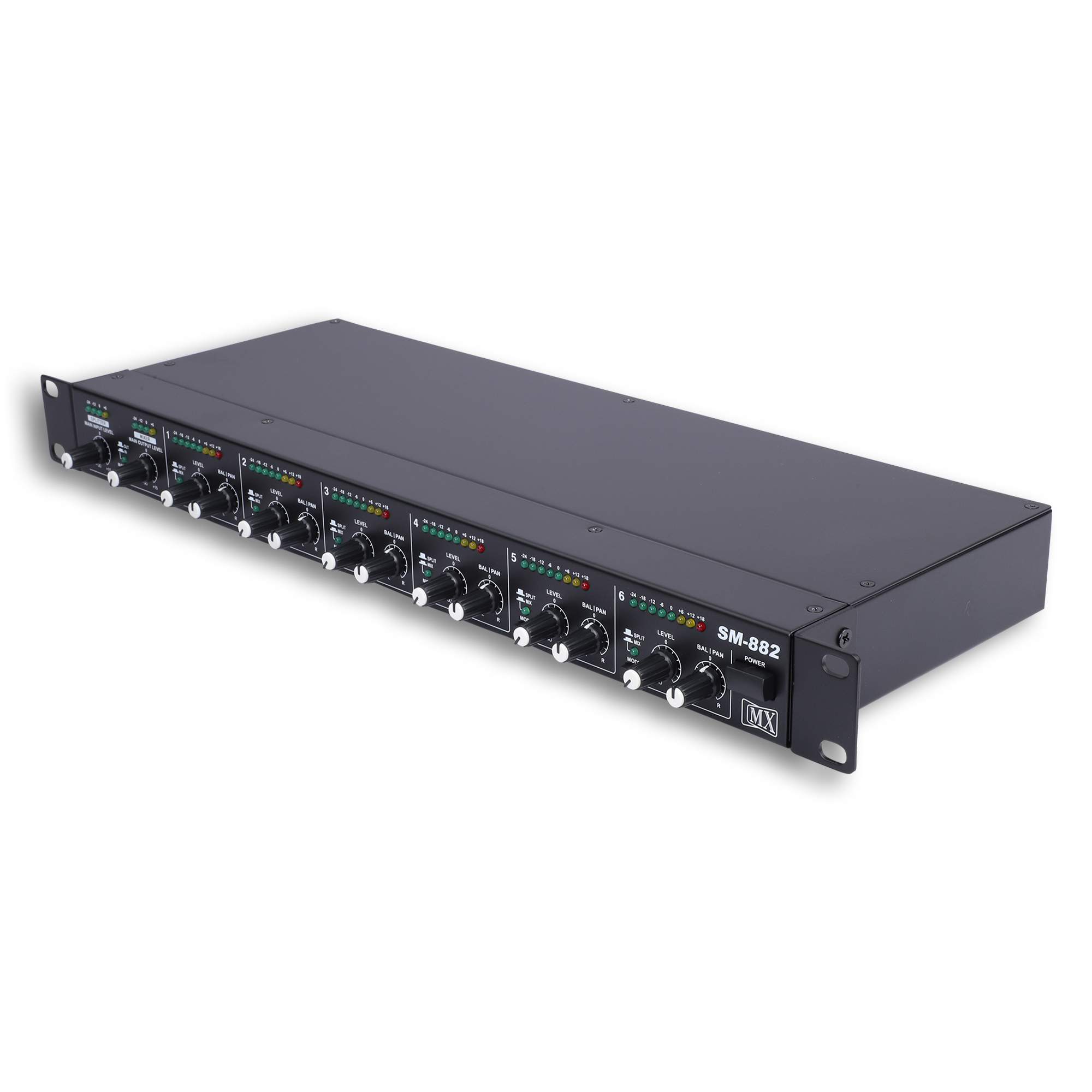

  • 6 mono input/output sections with level control, pan/balance control, 8-LED level meter and split/mix function switch

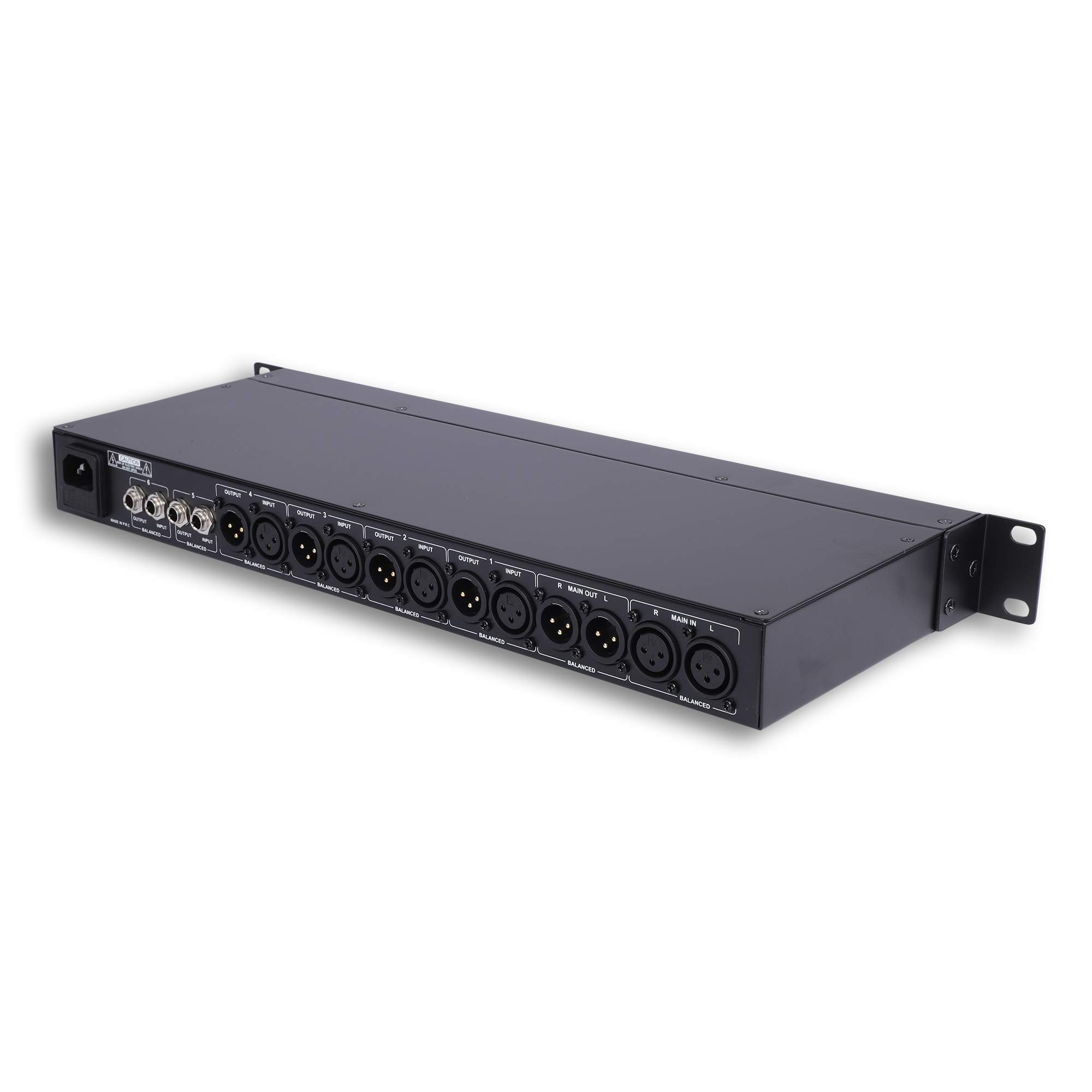

  • Balanced XLR input/output connectors for sections 1/2/3/4
  • Balanced TRS input/output connectors for sections 5/6
  • Each section can operate independently in mixer or splitter mode
  • Inputs work in mix configuration also as buffered level converters between -10 dB and +4 dB
  • 1 balanced XLR stereo input with level control and 4-LED level meter
  • 1 balanced XLR stereo output with level control and 4-LED level meter
  • All switches with LED status indicator
  • Internal wide-voltage swing linear power supply for excellent audio dynamics
  • Full metal case with detachable rack ears
  • AC mains voltage selector switch 115/230V
  • CE/ROHS compliant

Additional information

Weight 0.125 kg
