MX high quality: 4 channel power amplifier
MX Power Amplifier

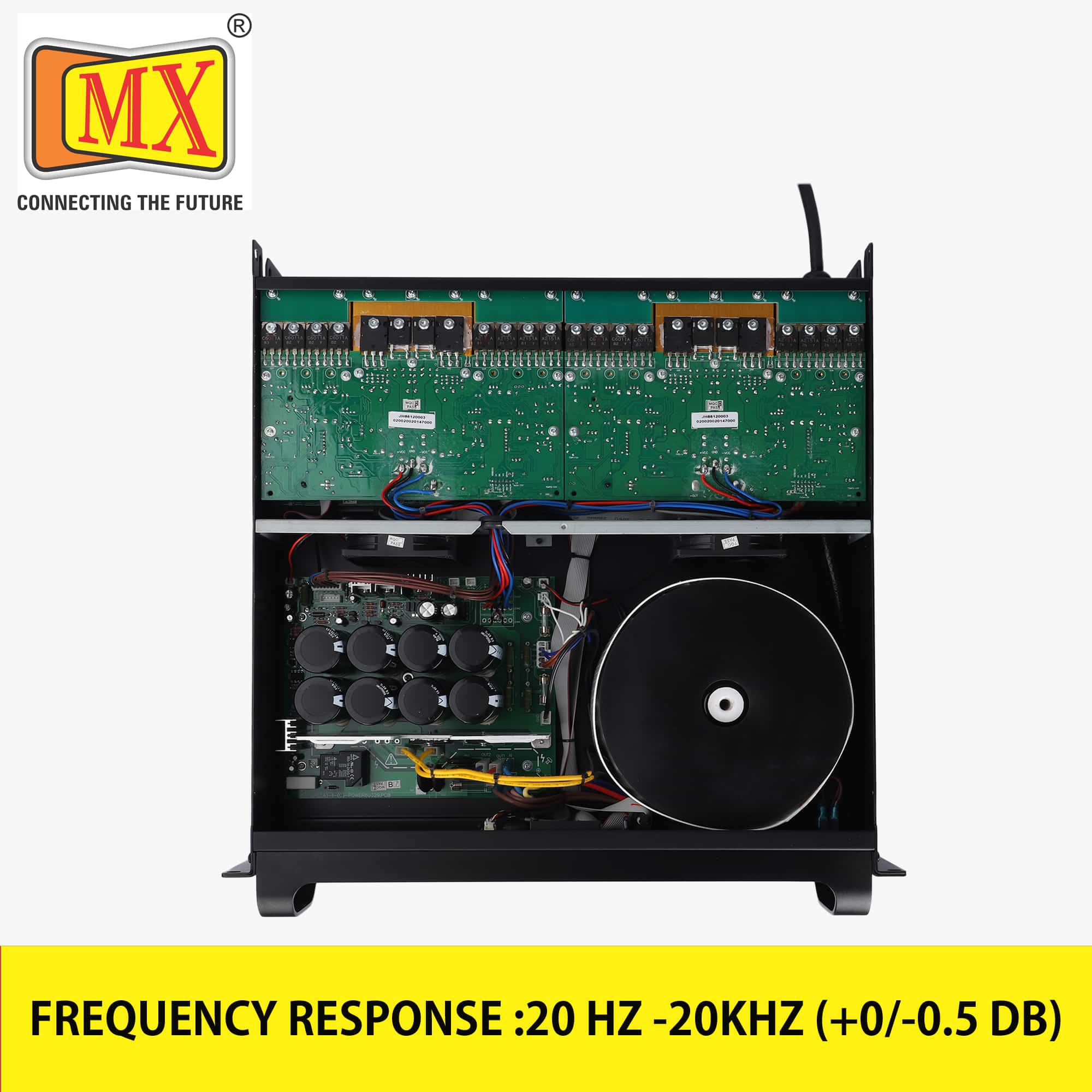

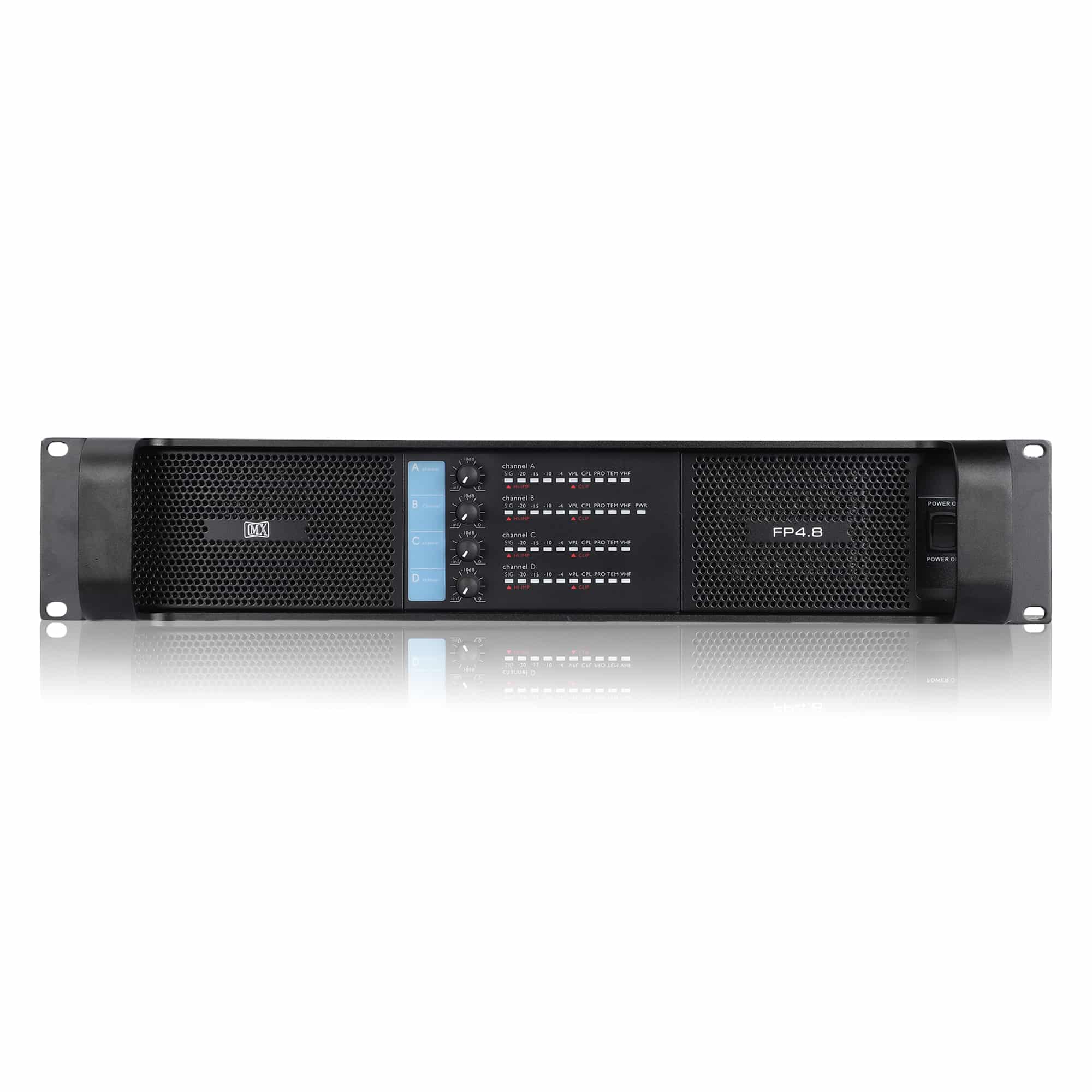

The FP 4.8 is the flagship four-channel model in the FP+ Series. At the core of the FP 4.8’s performance is the now proven technological milestone that is MX Class TD output stage, an amplifier topology that approaches the exceptional efficiency of Class D while retaining the sonic purity of proven Class B designs. Further contributing to the remarkable efficiency of the FP 4.8 is a Regulated Switch Mode Power Supply which gives the added benefit of stabilizing rail voltages to the output even with wide fluctuations of mains voltage. A highly refined and updated circuit layout optimizes the interaction of R.SMPS and Class TD to produce the extraordinary power density of the FP 4.8.
- Secure Payments
- Fast Delivery
- GST Invoice Available
Description
MX Power Amplifier

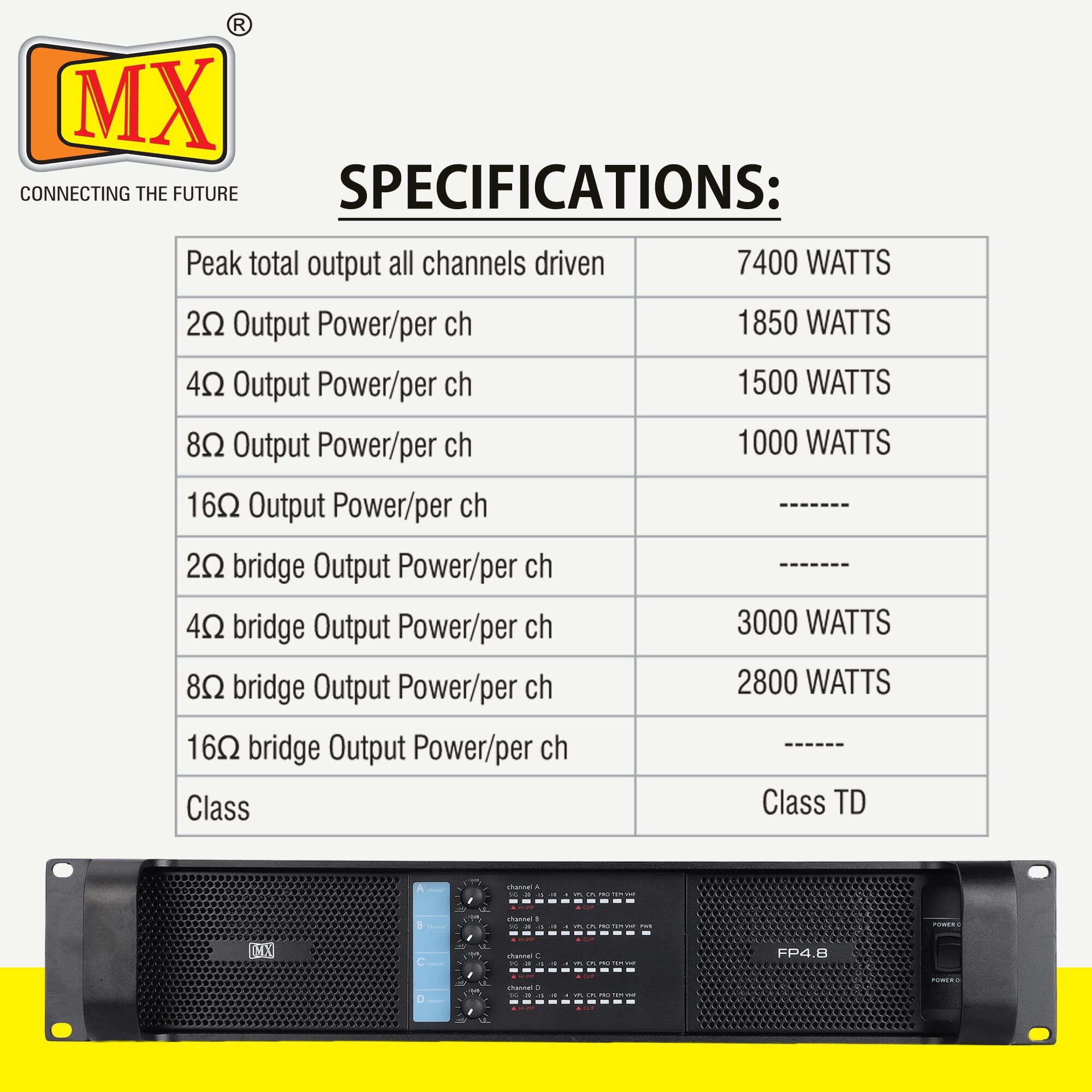

Specifications:
- Peak total output all channels driven : 7400W
- 2 Ohms Output Power/per ch : 1850W
- 4 Ohms Output Power/per ch : 1500W
- 8 Ohms Output Power/per ch : 1000W
- 16 Ohms Output Power/per ch :–
- 2 Ohms bridge Output Power/per ch : —
- 4 Ohms bridge Output Power/per ch : 3000W
- 8 Ohms bridge Output Power/per ch : 2800W
- 16 Ohms bridge Output Power/per ch : —
- Class : Class TD
- Frequency Response : 20Hz – 20kHz
- THD+N (20hz-20KHz) : <0.1% Damping factor(8 Ohms,20hz-1khz) : >1000
- Signal to Noise ratio : >112db
- Cross talk(20-20khz) : >70db
- Input Sensitivity : 0.775V, 1V, 1.4V
- Input impedance : 20k Ohms balance/10k Ohms unbalance

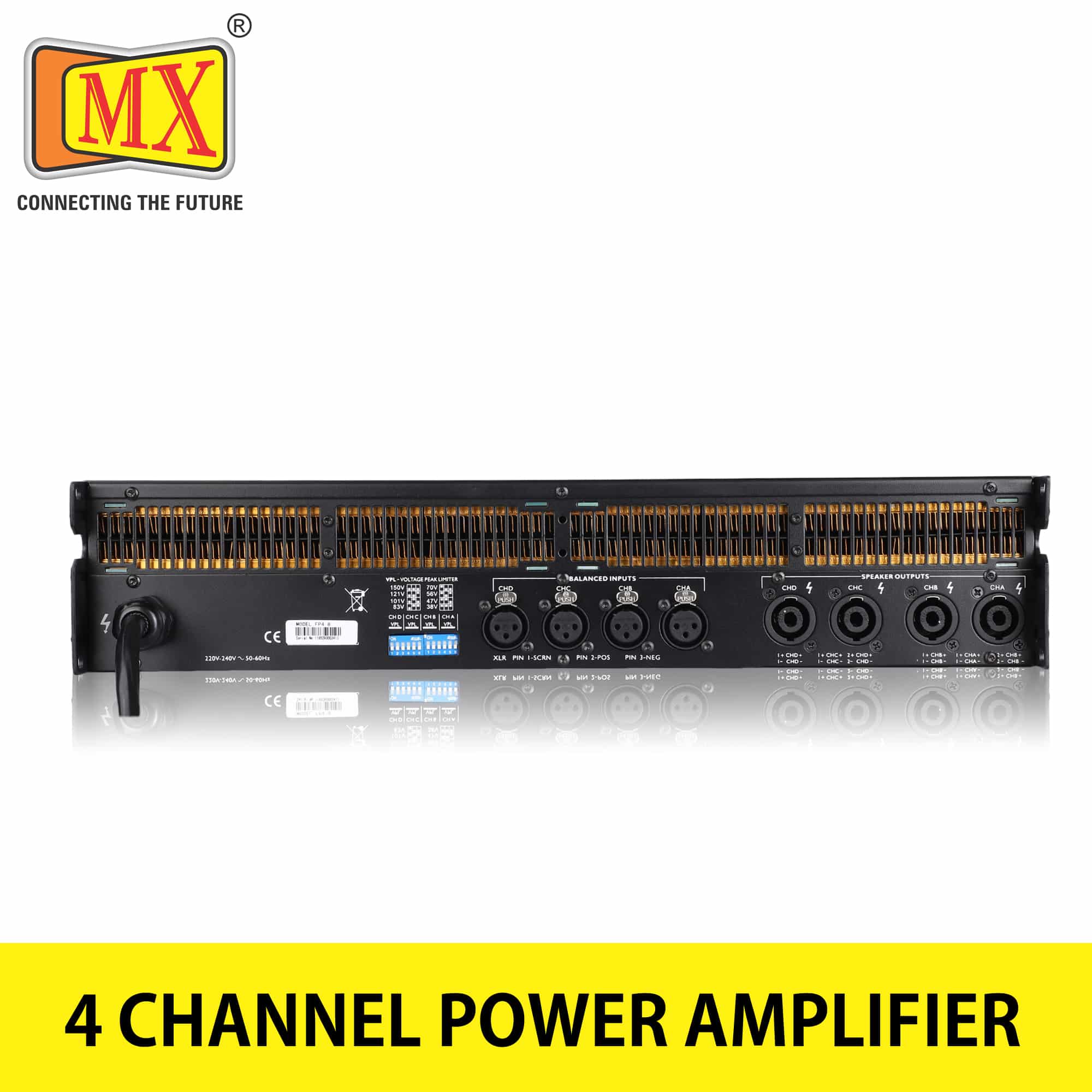

- Output Connector : Speakon
- Cooling : Dual fan, front to rear airflow
- Power Supply : 130-265 V
- HSN Code : 85184000
CONTACT US: Incase you have any issues accessing this page please email us at [email protected] or WhatsApp us on: +91 8805029016 / 9552529345
Check out more Power Amplifiers.
You can view more about our Product Videos on our Youtube Channel.
You can also buy MX products from Amazon.
For any bulk inquiries call +91 8805029016 or email [email protected]
Additional information
Weight | 20 kg |
---|
