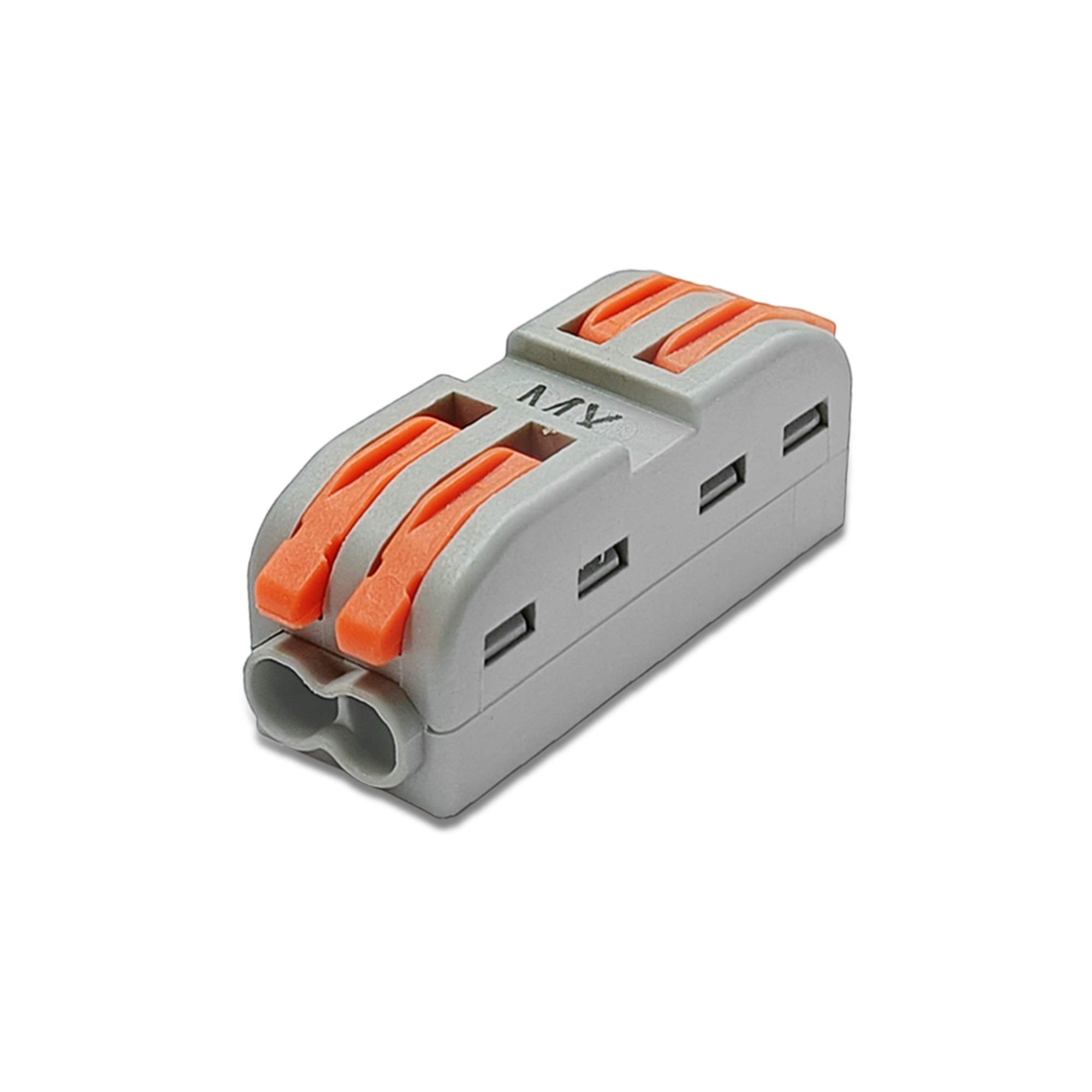

MX 2 Pole Wire Jointer Connector with Spring lock lever for 2 wire line connection (Rated Current – 32A : Compatible with wire size – 28 ~ 12 Awg)

HSN Code 8529 9090

MX Snap action blocks are perfect when you have to quickly wire up a bunch of free-hanging components, and you don’t want to solder. They’re much easier to use than wire nuts, and of course, they are reusable and do not require any crimping.

MX-222-412D is a 2 to 2 wire block: there are five separate inputs and five separate outputs. Each block connector has a metal block inside and levers that snap open and close to bind stranded/solid-core wire from 12 AWG down to 28 AWG. No screwdrivers or crimpers are required, making them super handy for free wiring. Each block is marked to handle up to 32A at 250V.

MX 2 Pole Spring Lever Connector comes with compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08 Sq. mm to 2.5 Sq. mm area or soft multi-strand wire with 0.08 Sq mm to 4.0 Sq mm area (AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.
