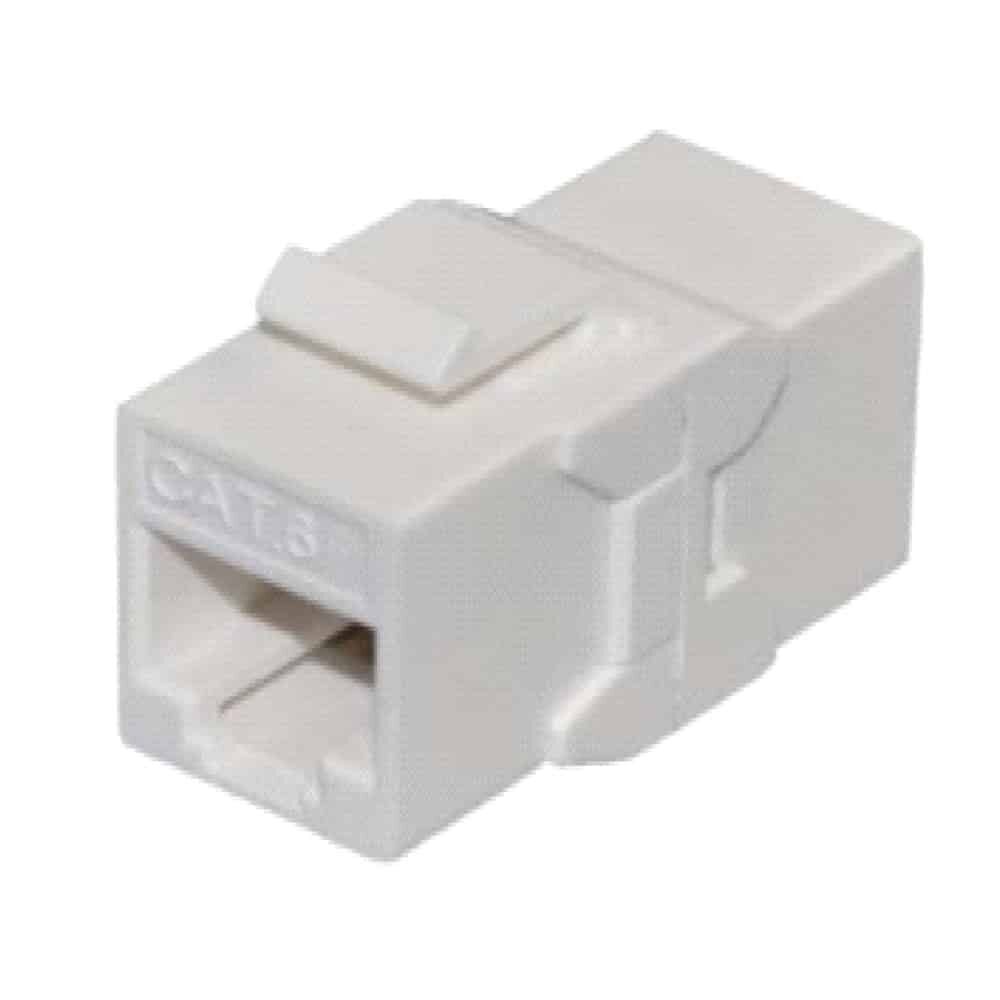

MX UTP CAT 6 Inline Coupler ( White )

330.00 Original price was: ₹330.00.248.00Current price is: ₹248.00.
In Stock
HSN Code 8529 9090

Cat6 Inline Coupler Keystone Type, WhiteDesigned for use in keystone ready applications. Easy to use coupler style keystones allow you to use RJ45 terminated cables in the front and the back eliminating the need to splice wires while standing behind a rack. Use in keystone patch panels, surface mount boxes, or wall plates that utilize the industry standard keystone module. CAT6 Keystone inline Couplers from MX? provide the ultimate performance at a competitive price. Whether they are being used in a home network installation or being pushed to the limits by the largest data hungry applications out there; these Couplers will live up to the expectations time and time again. The Phosphor Bronze termination contacts will stand up to multiple punches while the couplers as a whole meet or exceed the industry standard. MX Category 6 inline couplers are 8-Position 8-Conductor (8P8C). Get the most out of your network with MX Category 6 Keystone Jacks. The advantages of Cat 6 Inline Coupler are as below:1. The most cost effective way to link several networking cables.2. Connect two computers together without using a hub.3. Compact design, could be snapped into a blank patch panel to work as an interconnect feed-through.4. Slim and compact.5. It can be used in different conditions and transmission compliance remains.6. It features press-fit technology, which is lead-free and no solder.

This product has been added to 1 people'scarts.

In Stock
  • Secure Payments
  • Fast Delivery
  • GST Invoice Available

Description

Specifications:

MX Cat6 180-degree inline couplers use for wiring your home, stabilizing connector, and it?s easy to wire and punch down.
For patch panels, surface mount boxes, or wall plates (face plates) with standard keystone ports, the RJ45 coupler can snap right in to the face plate and hold tightly
Insertion Life: 750 Mating Cycles With FCC Compliant RJ-45 Plug.
Contact Force: 100 Grams With FCC Compliant RJ-45 Plug.
Plug Retention Force: 11 LBF MIN.
Operating Temperature Range: -10?C To 60?C.
Storage Temperature Range: -40?C To 68?C.
Humidity: 10% ~ 90%RH.
Gold plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection; supports tool-free, impact tool, or crimp tool termination
Category 6 rated performance up to Gigabit Ethernet speeds for a fast and reliable network, can be used with Cat6 and backwards compatible with Cat5, CAT5e Ethernet cables
RoHS Compliant
RJ45 Contacts coated with 50 Microns of gold
110 Contacts are Phosphor Bronze
8-Position 8-Conductor (8P8C)
Made in Taiwan

Additional information

Weight0.030 kg
color

Black, Grey, Ivory
