Specifications:

• MULTI DVR/ NVR CONTROLLER
• SWITCHING 4 DVR – NVR OUTPUT / USB OUTPUT AT THE SAME TIME
• 4 PORT VGA INPUT
• 3 PORT USB INPUT
• 1 AUDIO IN & OUT
• NO EXTERNAL POWER REQUIRED
• QUICK & EASY TO SWITCHING
• DVR/ NVR USB BACK UP
• DVR/ NVR USB WIFI CONNECTION.

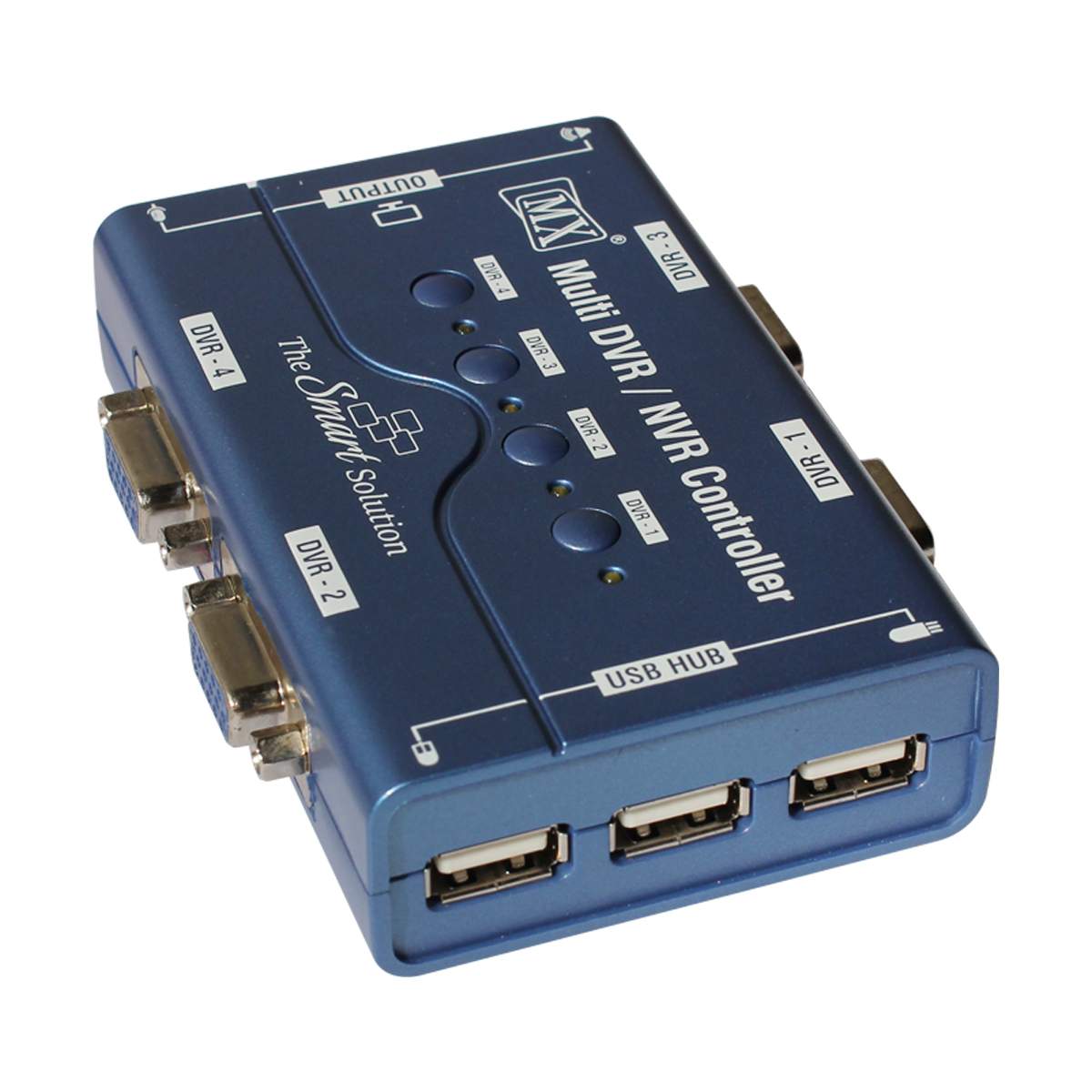

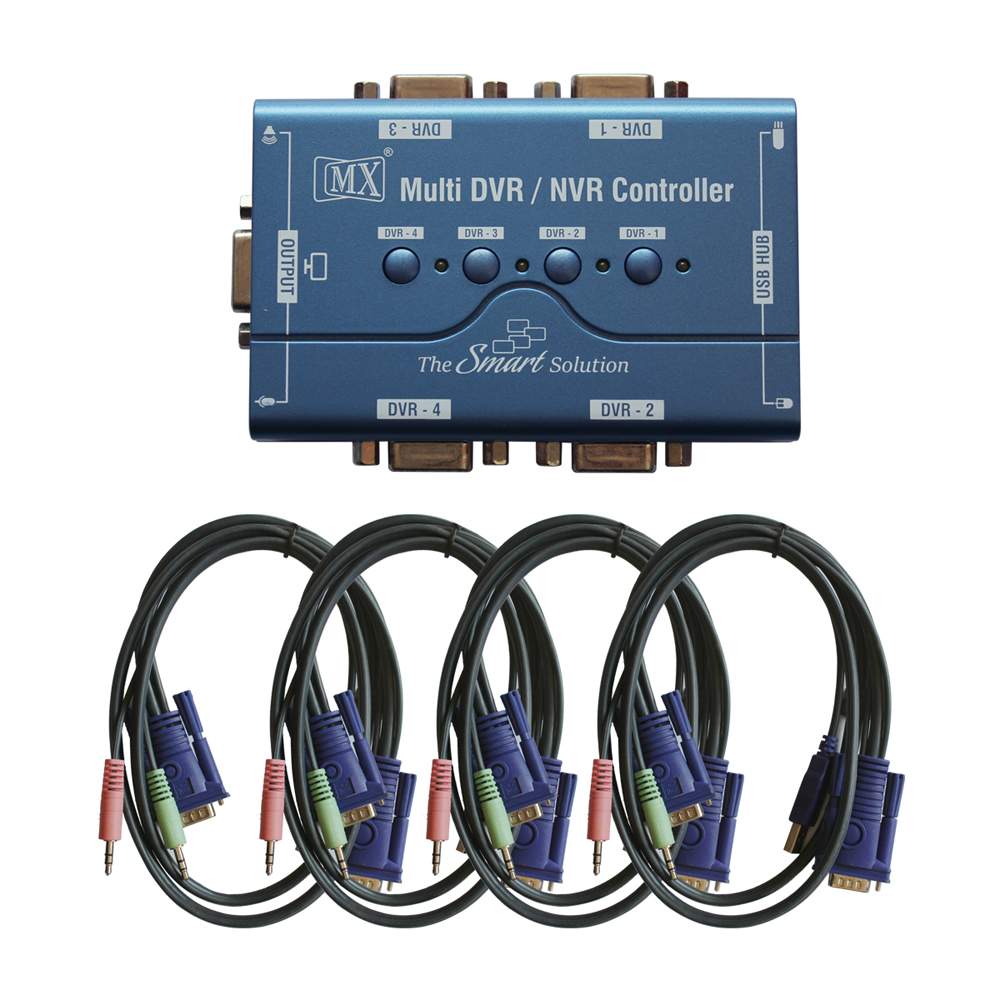

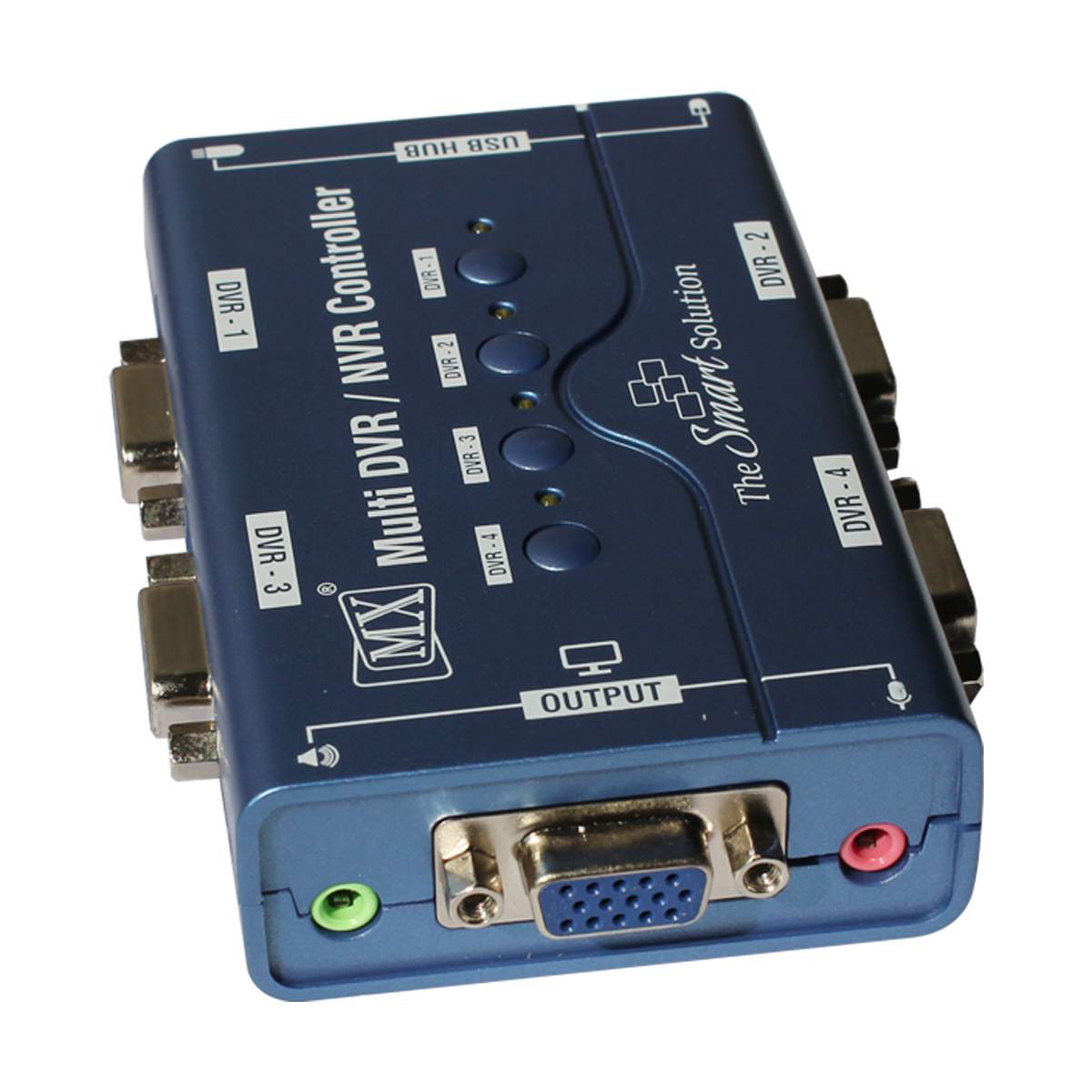

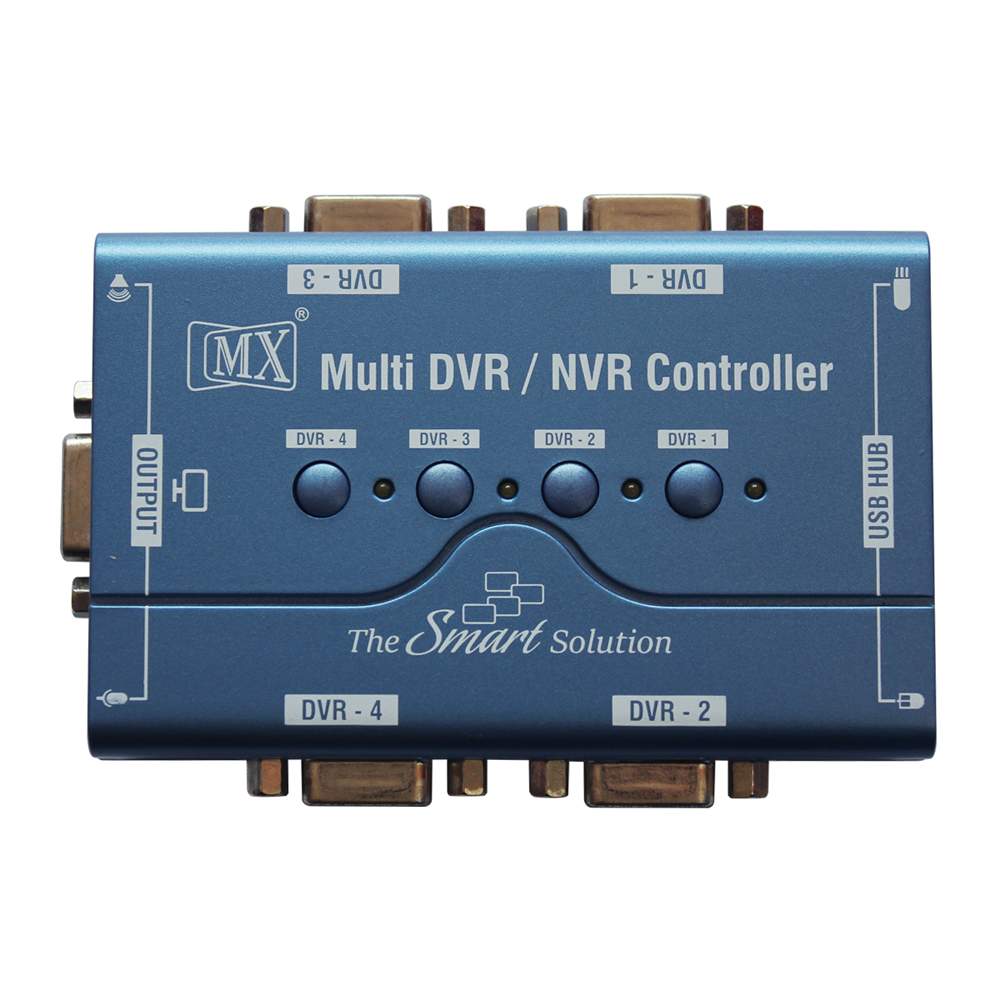

The MX MULTI DVR / NVR CONTROLLER – 4 Port USB KVM Switch allows you to control up to 4 computers from a single keyboard, monitor and mouse, so you don’t have to purchase a monitor, keyboard and mouse for each PC. Your desktop will also look less chaotic. Your KVM switch can be placed underneath your desk, with 4 sets to KVM cables connecting from this switch box to 4 computers. Each KVM cable set includes a video cable for PC’s VGA connector, and a single USB 2.0 cable for the PC’s USB port. From the KVM switch box, you can connect to 2 USB devices: a USB keyboard and a USB mouse. 2 sets of KVM cables are provided for ready connection to 2 computers, the remaining KVM cables are optional.

Easy Control
You can switch quickly between the individual client computers by pushing a button on the MX MULTI DVR / NVR CONTROLLER – 4 Port USB KVM Switch or by pressing the hot keys on your keyboard. The KVM switch confirms the switchover with an acoustic signal, and has LEDs indicating which PC is currently being served by the console. All connected PCs are automatically scanned every 10 seconds, so your monitor, keyboard and mouse are updated whenever you switch to a selected PC. MX MULTI DVR / NVR CONTROLLER – 4 Port USB KVM Switch guarantees that the client PC does not crash when it is disconnected from KVM switch box.

High Monitor Resolution Support
The MX MULTI DVR / NVR CONTROLLER – 4 Port USB KVM Switch is capable of supporting the most demanding resolutions (VGA, SVGA and Multisync monitors) of up to 2048 x 1536 at 75Hz refresh rate (bandwidth up to 400MHz) without any noticeable degradation in image quality.
