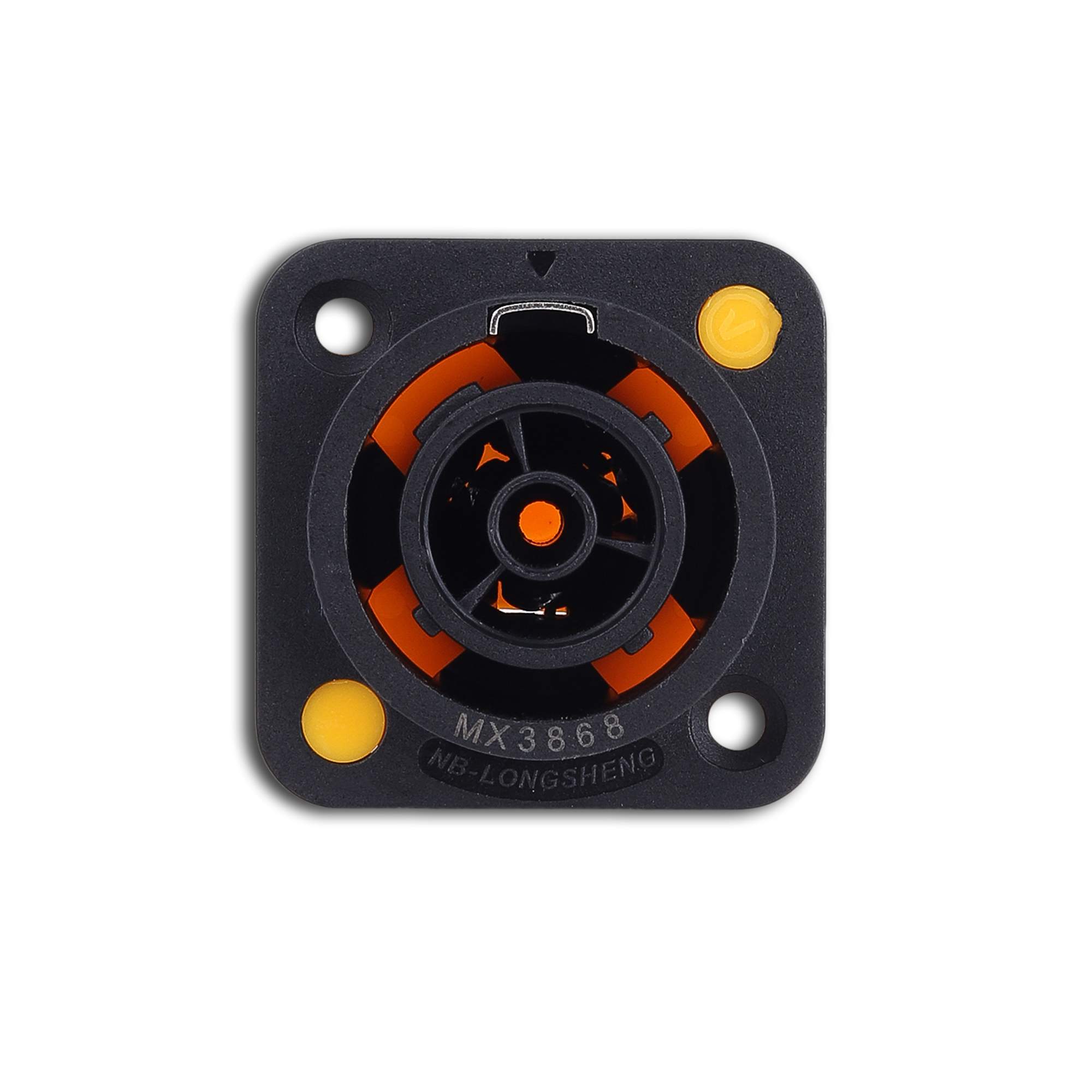

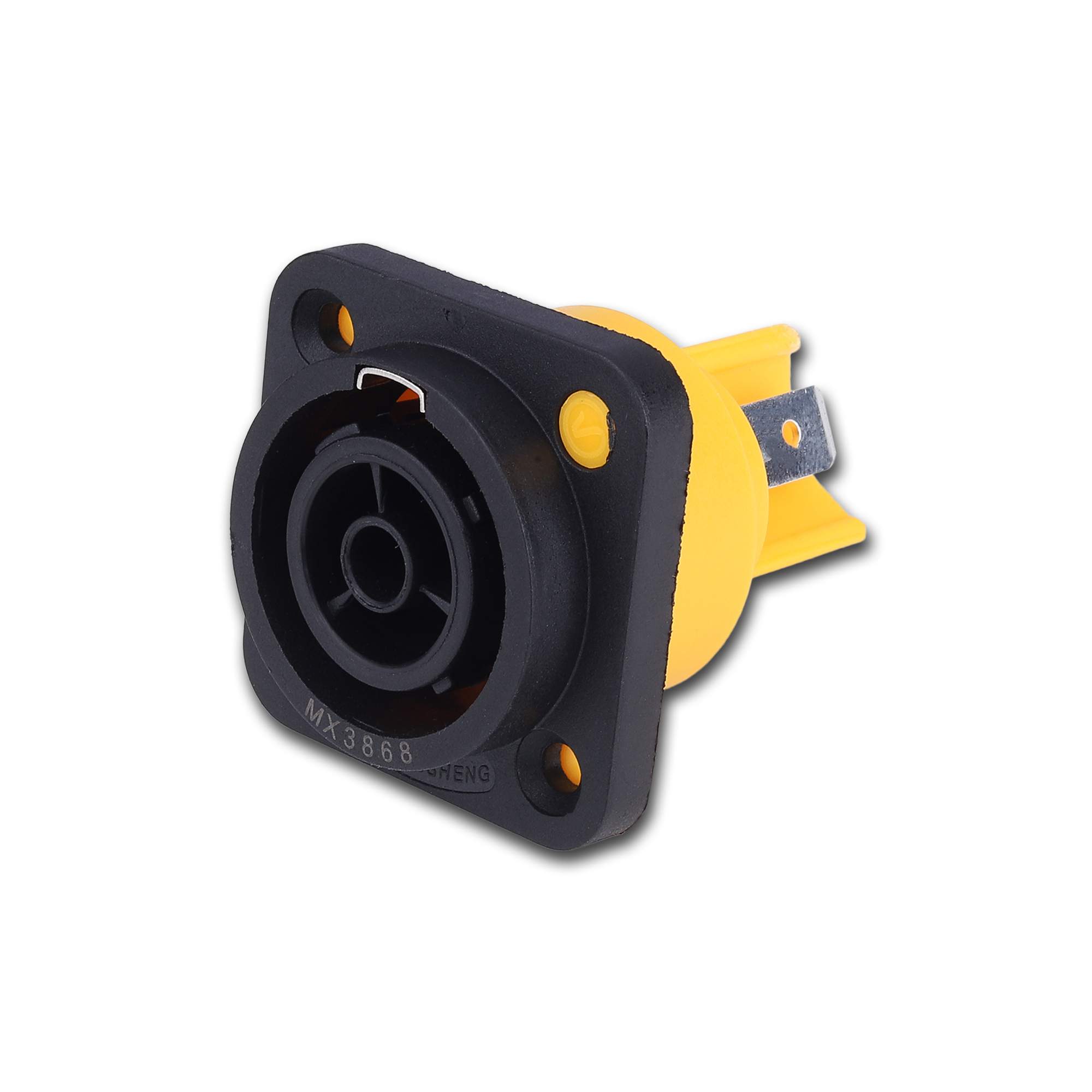

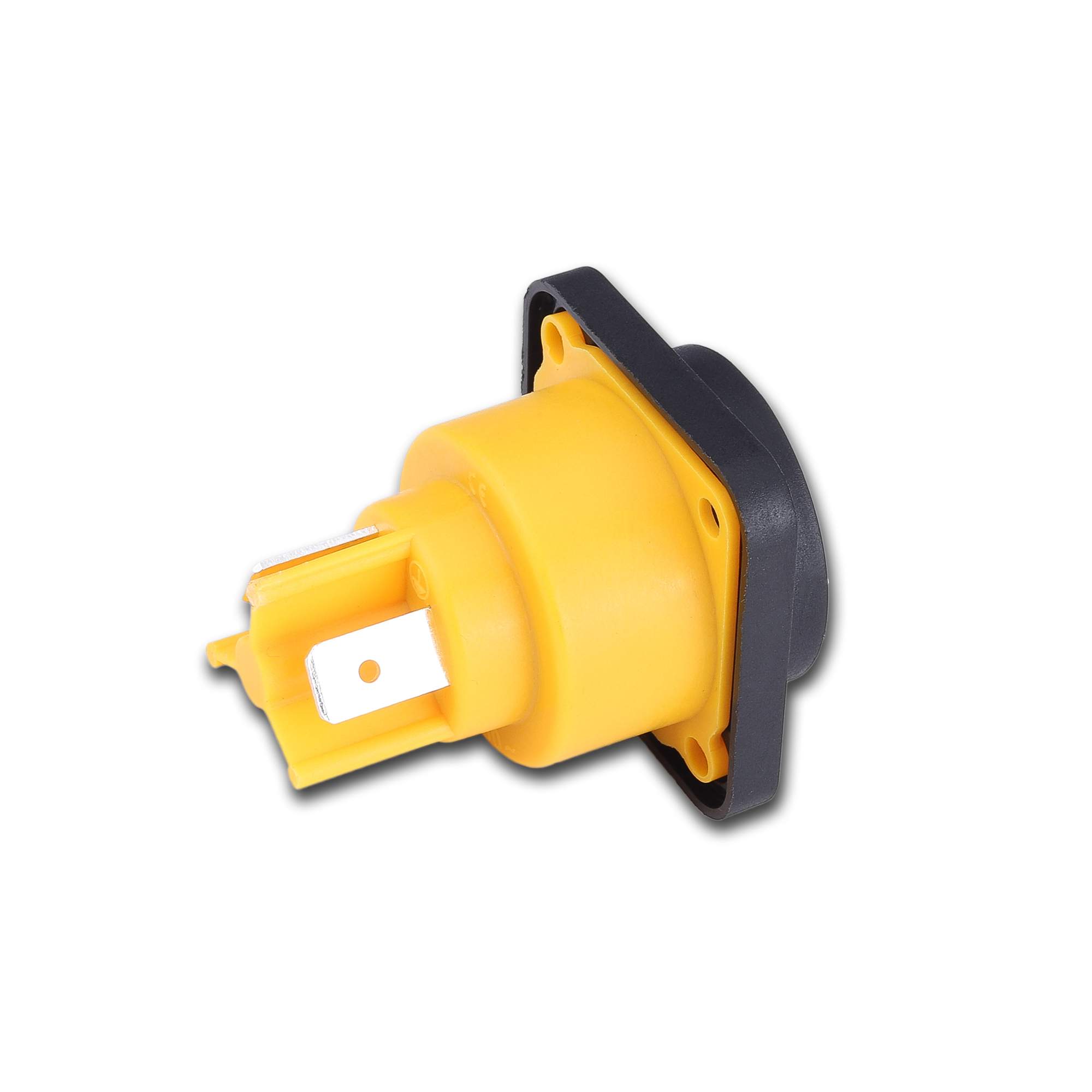

MX 3 PIN FEMALE POWERCON TRUE CONNECTOR LOCKABLE PANEL MOUNT 16 A SINGLE PHASE

₹590.00 Original price was: ₹590.00.₹443.00Current price is: ₹443.00.
In Stock
HSN Code : 8529 9090

MX Truecon?powercon True1?mains Chassis Female connector with breaking capacity?Appliance outlet connector, 1/4” flat tab terminals. The powercon True1 is a locking 16 Amperes true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The?powercon True1?is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

In Stock
Add to wishlist
  • Secure Payments
  • Fast Delivery
  • GST Invoice Available
SKU: MX 3868
Categories: , ,

Description

Specifications:

  • Appliance outlet connector, 1/4” flat tab terminals?
  • The powercon True1?is a locking 16/20 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
  • The powercon True1?is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
  • True mains connector with breaking capacity (CBC)?
  • Lockable 16 A single phase connector (USA: 20 A)?
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique MX cable retention?
  • ENEC certified according to IEC 60320?
  • UL recognized components?
  • Rated current per contact: 16 A rms
  • Rated voltage: 220 – 250 Volts ac
  • Wire size: 1.0 – 2.5 mm- 12 AWG
