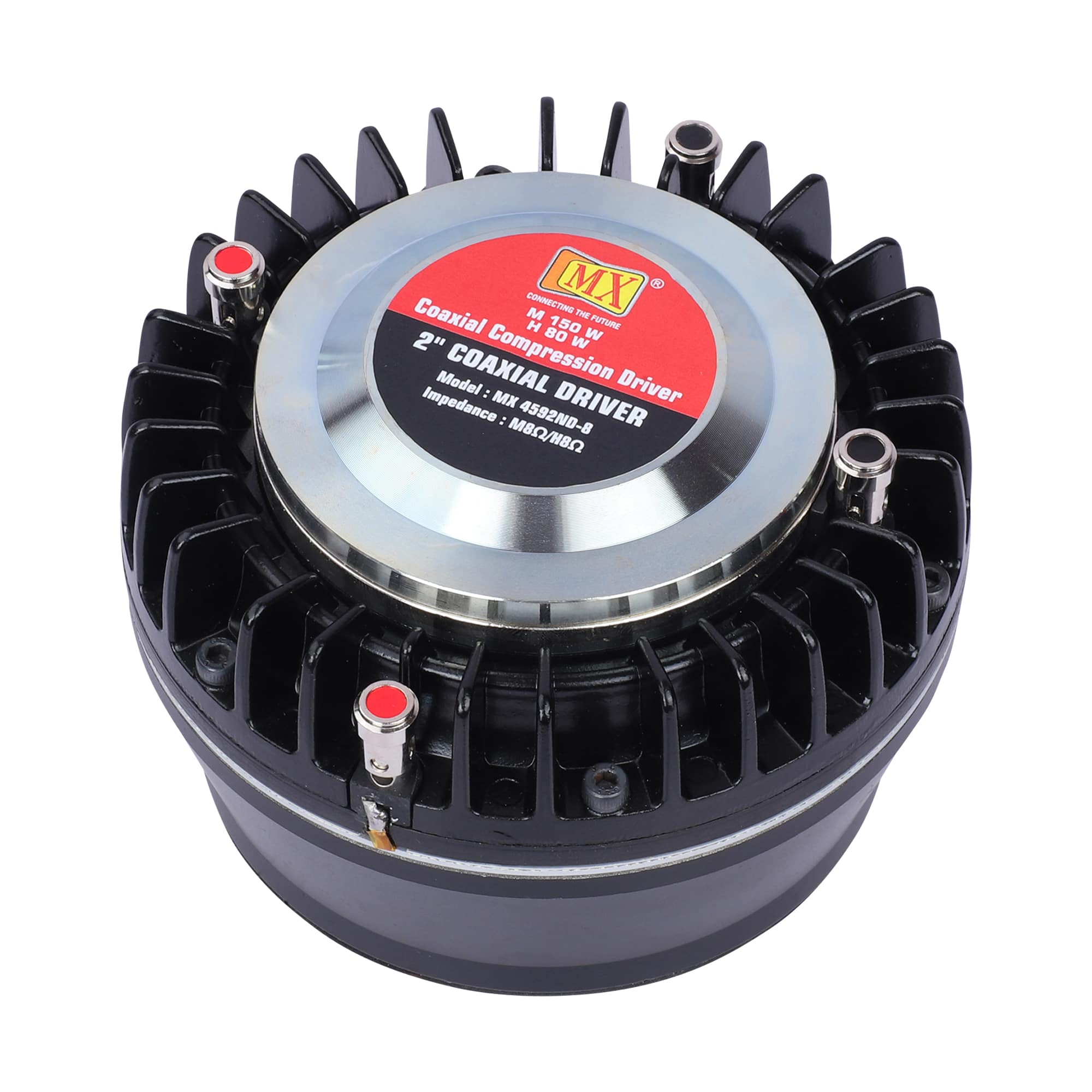

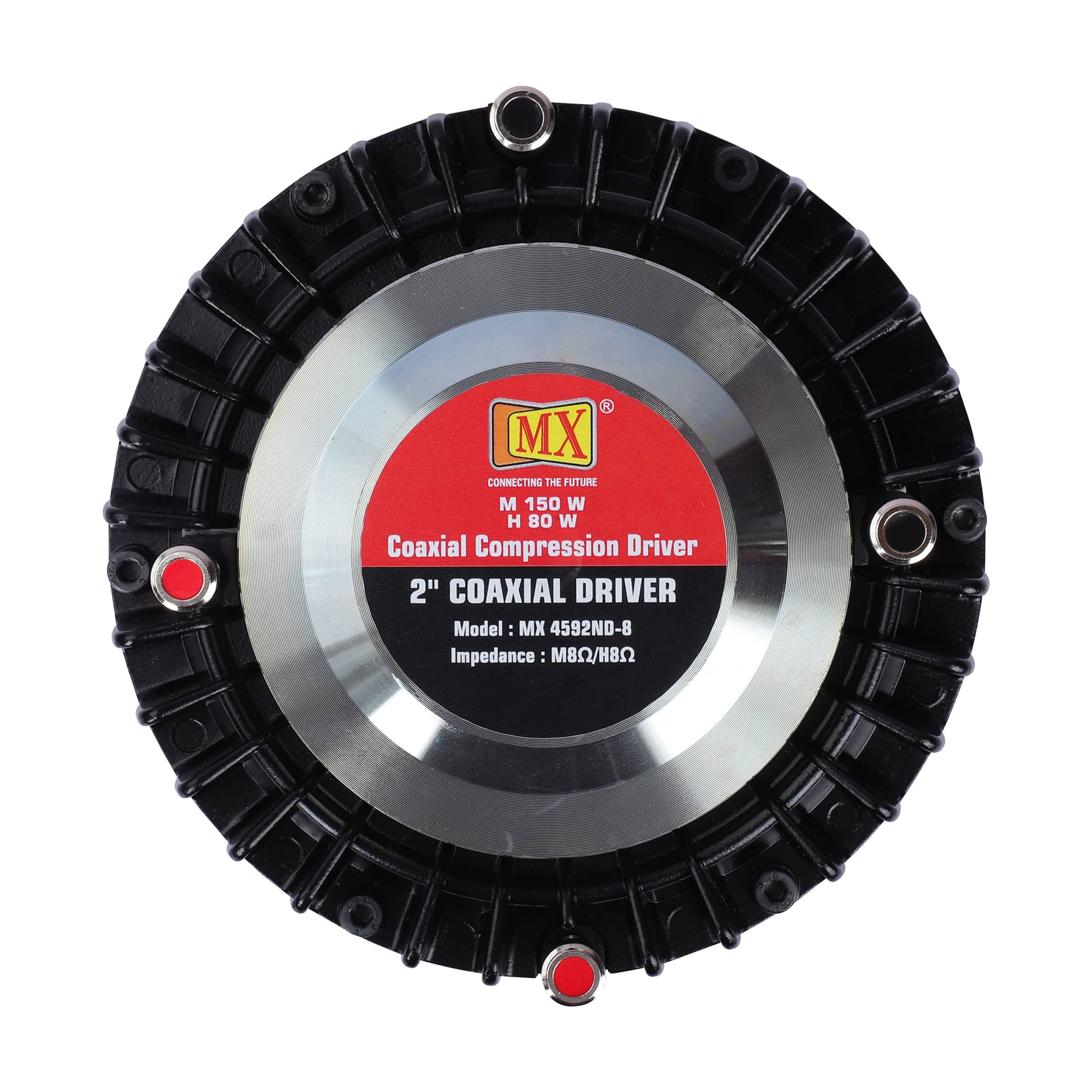

MX 2″COAXIAL DRIVER (HIGH+MID)

HSN Code : 85189000

In a conventional full range compression driver the phase plug must be located extremely close to the diaphragm, excursion of the diaphragm is limited and middle frequency performance is compromised. A typical 2″ dome compression driver has a limited high frequency response. Above 8 kHz the dome diaphragm breaks up causing resonance and harsh metallic sound. The MX annular midrange diaphragm covers the frequency range between 400 and 7000 Hz with a smooth linear response. The large diaphragm excursion of max. +/- 0.8 mm results in high output and increases power handling up to 1300 W peak. The ultra light annular diaphragm for the high range offers exceptional transient response with very high efficiency between 6 and 22 kHz.
